High precision Z3132 Universal Radial Drilling Machine
Basic Info.
Model NO.
Z3132
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max.drilling diameter
32mm
Spindle box horizontal movement
500mm
Spindle center to column surface
315-815mm
Spindle nose to base
25-870mm
Spindle rotary angle
360°
Spindle travel
130mm
Base table size
710×500mm
Shipping terms
EXW,FOB,CFR,CIF
Transport Package
Plywood Case
Specification
1800*700*2044mm
Trademark
LUZHONG
Origin
China
Production Capacity
2000 Pieces/Year
Product Description
High precision Z3132 Universal Radial Drilling MachineProduct Description
Product Parameters
Technical specifications:
| Specifications | Z3132 | |
| Max.drilling diameter | 32mm | |
| Spindle center to column surface | max | 815mm |
| min | 315mm | |
| Spindle box horizontal movement | 500mm | |
| Spindle nose to base | max | 870mm |
| min | 25mm | |
| Spindle rotary angle | 360° | |
| Spindle rotary angle round horizontal line perpendicular to the column | 360° | |
| Spindle rotary angle round the column | 360° | |
| Radial arm lifting speed | 1.51m/min | |
| Spindle box travel in column | 845mm | |
| Spindle taper | NO.4 | |
| Spindle travel | 130mm | |
| Spindle speed | 86.5,173 ,212.5,425,343,686,480,960r/min | |
| Base table size | 710×500mm | |
| Main motor power | 1.5kw/2.2kw | |
| Machine weight(apporx) | 850kg | |
| Machine size(L×W×H) | 1800×700×2044mm | |

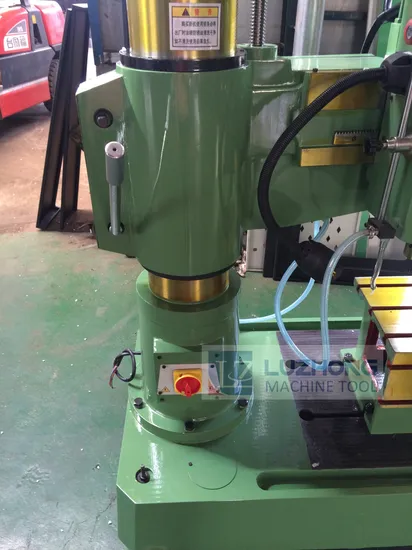

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
