130HP Self Loading Mobile Concrete Mixer 4m3 From China Factory

Product Description

Hongyuan 270 Degree Rotating Self loading Mobile Concrete Mixer
1.Advantages Of Our Concrete Mixer 1). Original Price: FOB, CNF/CFR, CIF
2). Certificates: CE, ISO
3). Promptly Delivery:15-20 days
4).Excellent After-sale Service and Customization Service.
5).High Efficiency
*Capacity: 14 cubic meters(18.31 cubic yards)/hour;
110 cubic meters (143.87 cubic yards)/day;
33000 cubic meters(43,162.44 cubic yards)/year
*Labor-saving
*4 wheel drive, 2 wheels steering
*Accurate Electric Weighing System
*The mixing unit is slewing hydraulically through 270° for high discharge over 1.8m to the four sides of the vehicle
*Combined the fountions of Loading, Weighing, Pumping, Mixing, Delivering and Discharging
2.Product Description
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with
a powerful engine and 2 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material. The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete
mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.

3.Main Features
1) The self mixing concrete truck can automatic feeding, measuring, mixing and discharging
concrete.
2) The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3) It has independent water supply system, which can ensure the high quality of concrete.
4) It just need one operator to drive, load, and mix raw material while moving it.

Mixing drum	Capacity : 4.0M3, 14m3 concrete output/h, mixing speed: 3 gears both positive & inversion turns; maxing slewing angle of the drum: 270 degree.
Engine parameters	Yuchai YCD4P22T-130 , rated power/turns: 95kw (129HP)/ 2400rpm.
Drive system	Hydraulic component( variable stroke pump) : Eaton two grades gear transmission : road/off road, 4 wheel drive
Speed	Low gear speed: 0-9.5km/h, high gear speed : 0-28km/h
Cabin	Front cabin with rops &fops design, Double backward camera, sunshade curtain, Air conditioning
Hydraulic system	variable stroke pumps provide power separately to car drive and mixer. 2 constant rate pumps provide power to drum slewing , brake, water. cooling: water/air
Joystick	All working operation designed in one joystick
Bucket	Capacity: 0.6m3 hydraulic controlled door
Chute	Adjustable hydraulic controlled vertical 15 degree movement, horizontal free movement
Water system	Water pump with high pressure washing gun
Climbing angle	degree with full load
Brake	Wet brake, parking brake with gear box
Tires	Off-road engineering tire 16/70-20 PR16
Steering	Back axle steering, all hydraulic inner steering radius: 1988mm/4130mm outer steering radius:3767 mm/6030mm
Electric system	Battery :2X12V 120Ah, provide lighting and ignition
Fuel tank	110L
Hydraulic oil tank	80L
Carframe	All steel welding
Weight	Off load:8t, full load :18t
Weighing system	Equipped with high precision concrete weighing system & micro printer for detailed data of weight price, date etc.
Dimensions(LxWxH)	7500*2700*3380mm

4.Company Information
Established in 2005, Qingzhou Hongyuan Vehicles Co., Ltd is a professional manufacturer and exporter of wheel loaders. We are located in
Qingzhou City, Shandong Province, with convenient transportation access. All of our products comply with international quality standards and are
greatly appreciated in a variety of different markets throughout the world. We have over 100 employees to reach an annual sales e that exceeds
USD10,000,000, and we are currently exporting 100% of our product worldwide. We also have approved Real CE Certificate through Germany
TUV company.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. We have successfully studied and developed ZL06,ZL08,ZL10,ZL12,ZL15,ZL16,ZL18,ZL20,ZL30,ZL50,HY610, HY910, etc. Series mini loader and
medium size wheel loader with morethan 30 kinds of Accessories. We also developed Telescopic loader, Backhoe loader, Off-road forklift,
Sugarcane loader, Site Dumper, Self-loading concrete mixer, etc. As a result of our high quality products and outstanding customer service, we have exported to Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia, Moldova, Turkey,
Japan, Korea, Australia, Canada, USA, Algeria, Argentina, Bangladesh, Barbados, Belarus, Bolivia, Botswana, Brazil, Burma , Chile, Colombia, Costa Rica, Cuba, Dominica Rep., Ecuador, EI Salvador, Ethiopia , Gambia, Georgia, Ghana, Guinea, Honduras, India, Indonesia, Iraq, Ivory Coast, Jamaica, Kampuchea (Cambodia ), Kazakstan, Kenya, Kyrgyzstan, Laos, Latvia, Liberia, Libya, Malaysia, Mauritius, Mexico, Monaco, Mongolia, Morocco, Nicaragua, Pakista, Papua New Cuinea , Paraguay, Peru, Philippines, Puerto Rico, Russia, Saudi Arabia, Senegal, Sri Lanka, St.Lucia, Tajikstan, Tanzani, Thailand, Trinidad and Tobago, Turkmenistan, Uganda, Ukrain, United Arab Emirates, Uruguay, Uzbekistan, Venezuela, Vietnam, Zambia. etc.

If you are interested in any of our products or would like to discuss a customer order, please feel free to contact us. We are looking forward to
forming successful business relationships with new clients around the world in the future.
5.Packing & Delivery

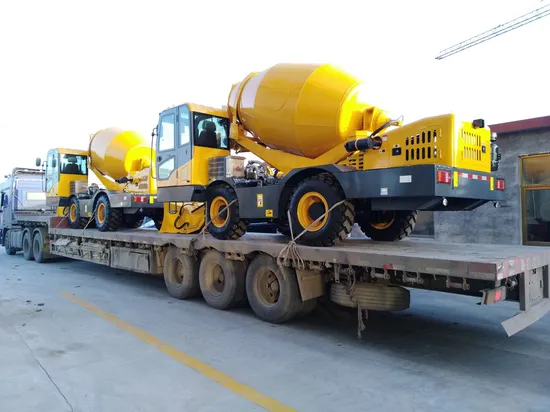

One 40'HC container can pack 1 unit with disassemble the cabin, drum, tires, etc. by Sea.
One 17.5M truck can pack 3 units with assembled by land.
6.Our Services We major export to Europe market from 2010, include Philippines,Vietnam,Myanmar,Thailand,Malaysia,Indonesia,India,Pakistan,Kazakhstan,Kyrgyzstan, Uzbekistan,Iraq,Saudi Arabia,United Arab Emirates,Turkey,Cyprus,Russia,Ukraine,Moldova,
Libya,Algeria,Morocco,Ethiopia,Kenya,Uganda,Cote d'Ivoire,Ghana,Zambia,Botswana,Mauritius,Honduras,
Costarica,Cuba,Dominican,Mexico,Colombia,Ecuador,Peru,Brazil,Chile,Argentina,Papua New Guinea,etc. we have many more than 40 coutries Customers. If possible, we hope you can be our agent of some models in one country or other regions.

The general warranty for new products is one year from the customer reveived the machines, don't include the shipping periods. We will pack some Spare parts for free, we afford to the charges of new spare parts and the express within one year. We also can send the repair worker to abroad for the after service if the customers need.
