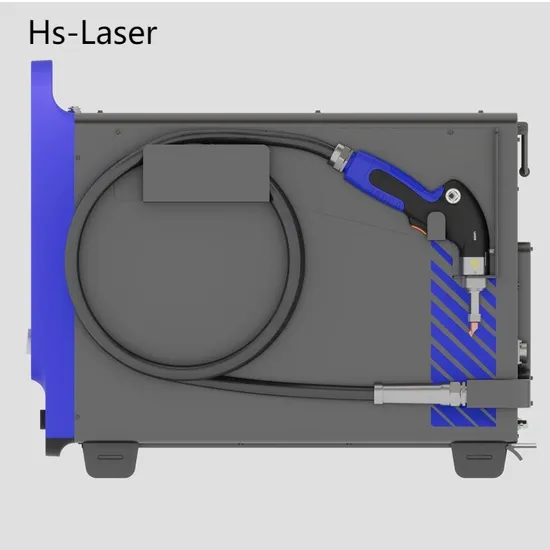

2025 Aluminum Carbon Stainless Steel Fiber Handheld Laser Welding Soldering Machine
| US$4,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HS-HW1200
Application
Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
Technical Class
Continuous Wave Laser
Control
Manual
Power Density
Deep Fusion Welding
Laser Classification
Optical Fiber Laser
Type
Portable Welding Machine
Laser Source Brat
Strongest
Weight(Kg)
45kg
Key Selling Point
Easy to Operate
Brand Name
HS Laser
Wavelength
1064
Focal Spot Diameter
120
Function
Metal Welding Service
Laser Type
Fiber Laser
Power Supply
220V 50Hz/60Hz
Cooling Method
Air Cooling
Transport Package
Wooden Box
Specification
670*505*310mm
Trademark
Hs Laser
Origin
China
Product Description
Dual circuit refrigerant laser welding machine1200W 1500W 2000W 2500W1. Experienced MIG and TIG users benefit from the faster, more flexible processing capabilities of fiber handheld laser welders;
2. Easy to learn and operate with the highest process consistency;
3. High-quality welding of thick, thin and reflective metals without distortion, deformation, undercut or burn-through;
4. Welding of dissimilar metal parts of different thicknesses;
5. Very low heat input with minimized heat-affected zone;
6. Minimal grinding or polishing for part setup and post-processing;
7. Increased productivity without machining or straightening of deformed parts.
| Item | HS-HW1200 | HS-HW1500 | HS-HW2000 | HS-HW2500 | |
| Rated input power supply | Single phase 220V | ||||
| Input power frequency | 50/60HZ | ||||
| Laser Power | 1200W | 1500W | 2000W | 2500W | |
| Guide Beam | Class 1 Red Guide Beam | ||||
| Laser Type (Welding mode) | Ytterbium Continuous Wave 1070 nm Fiber Laser | ||||
| Wave length | 1080nm | ||||
| Spot Size | 30μm | 14μm | |||
| Wobble Length | 5mm | ||||
| Cooling | Dual-circuit refrigerant direct cooling | ||||
| Weld penetration (Single side) | Aluminum | 1.5-2mm | <3mm | <4mm | <=5mm |
| Stainless Steel | 0.2~2.8mm | <3mm | <4mm | <=6mm | |
| Carbon Steel | 0.2~2.8mm | <3mm | <4mm | <=6mm | |
| Galvanized Sheet | 0.2~2.4mm | <3mm | <4mm | <=6mm | |
| Brass | <2mm | <2mm | <2mm | <=3mm | |
| Mild Steel | 0.2~2.8mm | <3mm | <4mm | <=6mm | |
| Process Gas | Argon, Nitrogen, Helium, compressed air | ||||
| Applicable Wire diameter | 0.8/1/1.2mm | 0.8/1/1.2/1.4/1.6mm | |||
| Safety | Class 4 Laser Device Customer responsible for standard ANSI Z136.1 safety precautions. System features include key for laser ON/Off, 2-step laser operation trigger (Enable and Fire), Part-head contact safety circuit, Facility door interlock circuit. | ||||
Weld Samples
