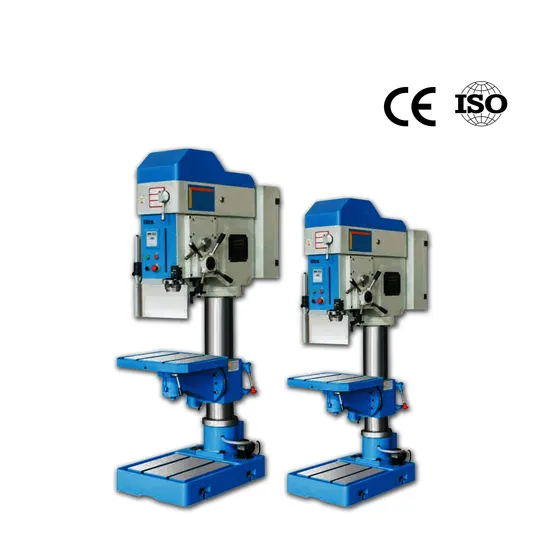

Senmo High Efficiency Vertical Drilling Machine Zwb5030
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
ZWB5030
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Max. Drilling Diameter
30mm
Max. Tapping Diameter
M20mm
Spindle Travel
135mm
Spindle Taper
Mt3
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900
Product Description
| Drilling Machine |
| Gear-driven Drilling Machine |
| Feature |
| Intelligent permanent magnet stepless variable speed drilling machine. |
| Specifications | ZWB5030 | ZWB5040 | ZWB5050 |
| Max. drilling diameter | 30mm | 40mm | 50mm |
| Max. tapping diameter | M20mm | M27mm | M30mm |
| Spindle travel | 135mm | 180mm | 240mm |
| Spindle taper | MT3 | MT4 | MT5 |
| Column diameter | 120mm | 160mm | 180mm |
| Spindle speed | 50-300,300-2500r/min | 50-250,250-2500r/min | 50-200,200-2000r/min |
| Rotation angle of the table around the column in the horizontal direction | ±180° | ±180° | ±180° |
| Table travel | 480mm | 550mm | 550mm |
| Distance from spindle center to column surface | 320mm | 360mm | 360mm |
| Table size | 420x360mm | 470x390mm | 470x390mm |
| Base size | 400x390mm | 450x460mm | 450x460mm |
| Table T-slots (No./width) | 2x14mm | 2x14mm | 2x14mm |
| Base T-slots (No./width) | 2x18mm | 2x18mm | 2x18mm |
| Max. distance from spindle nose to table | 540mm | 570mm | 540mm |
| Max. distance from spindle nose to base | 1110mm | 1160mm | 1130mm |
| Max. torque | 95N.m | 200N.m | 350N.m |
| Main motor | 2.2kW | 3kW | 4kW |
| Feed motor | 90W | 90W | 90W |
| Feed speed rate | 21-213mm/min | 18-183mm/min | 20-204mm/min |
| Coolant pump motor | 40W | 40W | 40W |
| Electromagnetic clutch motor | 21W | 24W | 32W |
| N.W./G.W. | 510/560kg | 690/745kg | 845/905kg |
| Overall size | 960x500x1950mm | 1045x665x2095mm | 1055x665x2150mm |
| Packing size | 1100x620x2260mm | 1170x680x2330mm | 1170x680x2390mm |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
