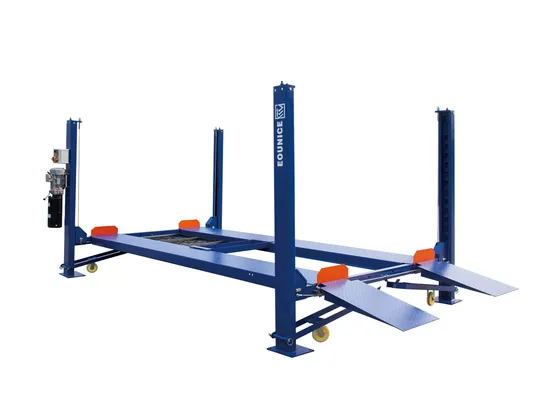

4 Post Hoist Four Post Garage Car Lift

Product Description

TECHNICAL DATA:

Model	Lifting Capacity	Lifting Time	Overall Height	Lifting Height	Overall Length (Inc.Ramps)	Overall Length (No Ramps)	Overall Width	Width Between Columns	Gross Weight
ON-7440PB	4,000kgs (9,000LBS)	≤60S	2426mm (86 5/8")	2200mm (86 5/8")	6330mm (249 3/16")	4980mm (196 1/16")	3596mm (141 9/16")	3300mm (129 15/1")	1059kgs (2,335LBS)
ON-7445PB	4,500kgs (9,500LBS)	≤60S	2426mm (86 5/8")	2200mm (86 5/8")	6330mm (249 3/16")	4980mm (196 1/16")	3596mm (141 9/16")	3300mm (129 15/1")	1074kgs (2,368LBS)

PRODUCT INTRODUCE 4,000Kg (9,000LBS.) lifting capacity. Reliable mechanical self-lock safety locking system. Manual safety lock release. Max height limit switch to ensure the cylinders work within the stroke. Skid proof diamond and low-profile platforms. Dual safety device: In case the primary safety locks are out of operation, the lift would also be locked automatically by the second safety device. Optional manual or pneumatic rolling jack. MAIN FEATURES The minimum ground height is 180mm(7 1/16"), which can effectively avoid the phenomenon of low chassis car hanging chassis. The upper end of the column is suspended and the lower end is adjustable (adjustable range is 40mm), which can effectively ensure the basic level of the two runways in the locked state and is less affected by ground factors. There are double insurance of manual safety and cable breaking safety inside the cross beam, and the reset device adopts pressure spring and guide bar structure, even if the spring is broken due to the reason of guide bar, it can still be effective to ensure the safety of use. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
OUR FACTORY: Warranty term: Our products are warranted for one years on equipment structure, to be free of defects in material and workmanship.

Motors, gear box, power units, hydraulic cylinders, and all other assembly components such asturnplates, slip plates,

Cables, chains, valves, switches etc, are warranted for one year against defects in material or workmanship under normal use.
Our Services Our Company will be Provide to you some Service.

1. OEM ODM service.
2. Customized service.
3. One Year Quality warrant service, during the period spare part supplied free
if you pay for shipping.
4. Professional team supply service for life long time.
FAQ The Some buyer maybe ask ?

A:You Are Trade Company or Factory?
A: We are manufacturer and we have our own trade company.So pls don`t worry.

B: How long the production can be delivered?
A: Commonly the lead time will be within 15 days after receiving 30% deposit or L/C,
subject to prior sales.This ways based on 1 20FT Containers or 40HQ Container.

C: What is the regular color? Can I order special color which I like?
A: The regular color is Blue, Red, Yellow.
Yes, we can also produce machines with special color according to client's request.

D: Can I order in any special size?
A: Yes,you can.
The size is customized, but should be suitable for the inner size of containers.pls understand.
