Heavy Duty Vna Storage Pallet Rack with Three-Way Forklift Equipped

Product Description

Heavy Duty VNA Storage Pallet Rack with Three-Way Forklift Equipped
Welfor Very Narrow Aisle Pallet Rack on sale mainly used with the most advantage three ways forklift, occupying small aisle, saving the space of the warehouse, and can store and pick up products quickly, and cutting down the operating cost.Which particularly suitable for logistic center less than 15 m high.Comparing with the conventional pallet rack,its aisle is much narrower, ordinarily 1600-2000 mm, the space utilization rate will increase about 20%.Guide rails should be installed on the both sides of aisle for the three-way forklift running.

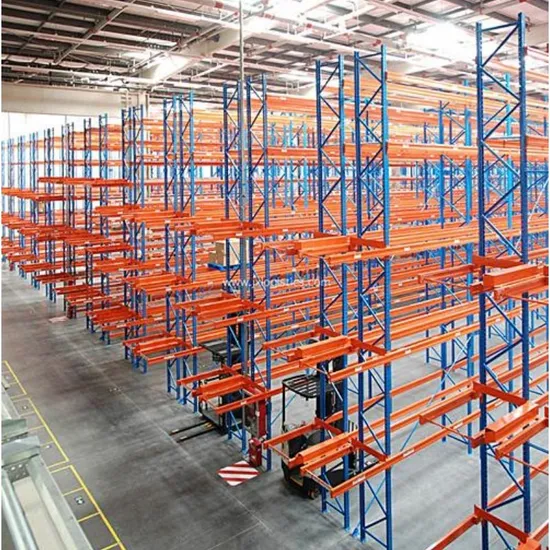

Detailed Photos
Features
1. The aisles of this rack are very narrow, reducing the aisle space can build more racks and maximize the use of warehouse space. 2. The narrow aisle racks have become smaller because of the smaller aisles, and the increased density of racks increases the storage capacity by 30%-80% than the normal pallet racking. 3. The amount of stored goods is large, the goods are in and out more frequently, and there are higher picking requirements for the goods. 4. It is about 1600mm-2000mm, which greatly improves the space utilization rate of the warehouse. 5. The operation mode is flexible, and the storage and retrieval mode of the shelf can be first-in-first-out or first-in-last-out to meet different usage requirement.
Product Parameters

Style	Pallet storage warehouse rack
Selection	Single Row, back-to-back Rows and multiple Rows
Dimension of pallet rack	Standard Pallet: 1200*800(F)/1200*1000(F)/1100*1100(F)/1066(F)*1220Depth: 1000MM/900MM/1020MMWidth: 2700MM/2300MM/2500MM/2432MMHeight: pitch is adjusted by increments of 75mm
	Customized Pallet: other special size( you can contact us directly)
Beam range of pallet rack	Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm
Upright range of pallet rack	80*60; 90*60; 90*70; 90*75; 100*67; 100*70; 100*75; 120*75; 120*87mm; Thickness: 1.5~3.0mm
Color of pallet rack	Bule and Orange or Customized
Weight capacity of pallet rack	5000KG per level max ; 1500KG per pallet max
Package of pallet rack	Packed by poly sheets and straps and pallets; Other parts and accessaries are packed by cartons; straps; wooden pallets, ect.
Lead time of pallet rack	20-25 working days

Production Process
Packaging & Shipping
Qiuck quotation
Q: How can I get your quick quotation on my pallet racking project?
A: Usually for a quick quotation, we need to know the following information:
1) Pallet Racking Dimension: Length*Depth*Height?
2) Number of beam levels?
3) Loading Capacity of each level?
4) Racking Quantity?
But if you are not sure of these information, then we could make a design for you with the following information:
1. Warehouse drawing (length*width*height) if CAD drawing is available?
2. Pallet size with goods (length*width*height)?
3. Pallet weight with goods?
4. Width of forklift working aisle? FAQ
1. What is MOQ limitation for rack system?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2. What is the lead time
++ 20-25 working days.
3. What is payments methods you can accept?
++ T/T and L/C are welcomed.
4. How about your sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5. What is warranty for your rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
