Horizontal Steel Bar Checker Projector (HOC-400)

Product Description

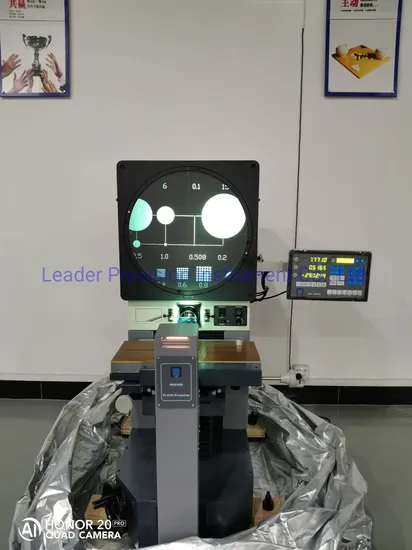

Horizontal Steel Bar Checker Projector (HOC-400)
Horizontal Steel Bar Checker HOC-400 is a reliable and affordable non-contact optical measuring system of high precision and efficiency. This Optical Measurement Device is widely used at the field of rebar, mechanism, meter, electronic, rubber industry for quality control.
Horizontal Steel Bar Checker HOC-400 can inspect all kinds of surface and outline of screws. This preicisio measuring device is an effective metrical and analytic system for education, research institute and lab.
Features:
1.400mm diameter screen with digtial protractor
2. Magnification accuracy: 0.08% contour, 0.12% surface.
3. Halogen Profile and fiber surface illumination
4. Powerful Geometric multifunction data processing system
5. Aviable Mini printer, footswitch and other accesssories
6. Helix angle stage adjustable: ± 15°
7. Heavy-duty, metal construction
8. Greater range and high accuracy
Powerful Metrology Counter provides fast geometric computations solution
The protractor screen has an effective diameter of 400mm(16"), allowing large workpieces to be inspected. The screen rotation can be digitally displayed with a resolution of 1' or 0.01° .
Warranty:
We guarantee 18 months Warranty time
Horizontal Contour Projector HOC400-2515:
Screen size: 400mm with 4 film clips
Travel-X. Z axis: 250mm*150mm
Y: 100mm
Stage size: 450mm*200mm
Stage load capacity: 30kg
Table swing range: 15°
Net weight: 240kg
Object lens: 10X. 20X. 50X. 100X. (standard 10X), reflector mirror attached
Magnification accuracy: 0.08% contour, 0.12% surface
Transmission illumination: 24V/150W halogen bulbs for contour
Reflection illumination: 21V/150W halogen bulbs for surface(pairs of fiber optic lighting)
Power supply: AC110-120V, 200-240V, single phase 50/60Hz
Linear scale-X. Y axis: 0.5µ Resolution
Angle measuring: 0.01° Or 1 resolution
Accuracy: (2.5+L/150)µm, L = length of the work piece measured ( unit: Mm)
Repeatability: 0.003mm
Transmission: Linear guide, fits fast moving
Digital readout: Metrology Counter with RS232 output
Features of Metrology Counter DC-3000:
(1). Skew
(2). MM/inch conversion
(3). ABS/INC conversion
(4). Zero setting
(5). 1/2 calculation
(6). 0° 90° 270° 360° Conversion
(7). Linear compensation
(8). RS232 output
(9). Geometric measurement

Technical Data
Item No.	HOC400-2515
Working table' s size(mm)	450*200mm
Stage Travel X-axis	250mm
Stage Travel Y-axis	100mm(for focus)
Stage Travel Z-axis	150mm
Accuracy	≤ (2.5+L/150)µm, L = length of the work piece measured ( unit: Mm)
Screen	Screen Diameter: 300mmwith 4 film clips
	Screen rotary range: 0° -360°
	Rotary angle resolution: 1' or 0.01°
Digital Readout	Metrolgoy Counter DC-3000 with RS232 output
Illumination	Transmission and reflection: 24V/150w-halogen lamp.
Power	AC110-120v, 200-240v, single phase 50/60Hz Total power 400W
Cooling	Fans
G. W/N. W	210KG/160KG
Dimension(L*W*H mm)	1090*585*1010 (mm)

Optional Delivery:
Measuring Software	Edge Detector	Charts(3 kinds)
HOC400-20X Objective	HOC400-50X Objective	HOC400-100X Objective
Holder with Clamp	V-Block with Clamp	Swivel Center Support
Mini-Printer	Rotary table	Calibration Scale

Standard Delivery:
Digital Readout DC-3000	HOC400-5X Objective	Screen Clamp
Foot-Switch	Power Cable	Light source

Quality System 1. Establish the quality management system based on ISO9001, improve quality inspection, and ensure that all the finished products are qualified.
2. All our measuring machines are with CE certification
3. All our measuring machines are assembled and adjusted with linear accuracy, so that the instrument accuracy is guaranteed by hardware assembly and adjustment to the greatest extent.
4. Our professional technical service team is familiar with the principle, structure, assembly, and software debugging of the instrument, freeing customers from worries!
5. We has provided professional and complete measurement solutions for many large and medium-sized enterprises at home and abroad, and
has won the trust of customers! After-sale Service
1. Free professional operation training
2. Warranty: 18 months instead of 12 months
3. Regularly upgrade of software is available free
4. Available lifetime technical support
