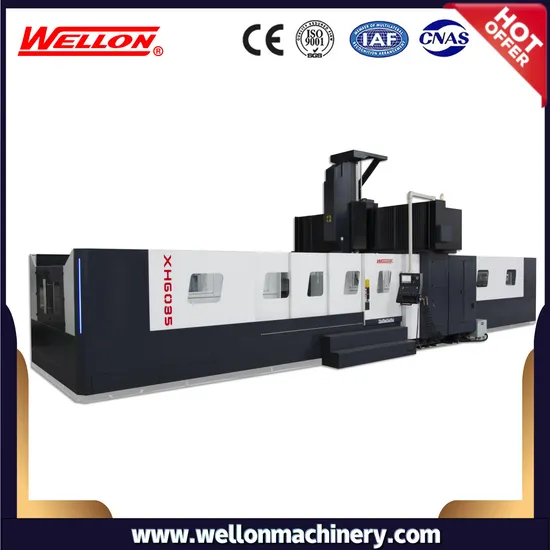

Wellon CNC Gantry Double Column Machining Center XH3025 XH4025 XH5025 XH6025
| US$150,000.00-250,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XH3025 XH4025 XH5025 XH6025
Process Usage
Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
X/Y/Z Axis Travel
6000/2000/1000mm
Worktable Size
6000X2300mm
Max Loading Capacity
18t
Spindle Speed
6000rpm Belt Type
Spindle Motor Power
22kw
Transport Package
Wood Case
Specification
GS CE ISO9001 Rohs
Trademark
WELLON
Origin
China
HS Code
8457103000
Production Capacity
30 PCS/Month
Packaging & Delivery
Package Size
14500.00cm * 3400.00cm * 3800.00cm
Package Gross Weight
38000.000kg
Product Description
Product DescriptionDouble Column Machining Center XH3025 XH4025 XH5025 XH6025
Hot Sale Products
Detailed Photos
Product Parameters
Technical Parameters:
| Item | Unit | XH3025 | XH4025 | XH5025 | XH6025 |
| X axis travel | mm | 3000 | 4000 | 5000 | 6000 |
| Y axis travel | mm | 2700 | 2700 | 2700 | 2700 |
| Z axis travel | mm | 1000 | 1000 | 1000 | 1000 |
| Spindle nose to worktable | mm | 280-1280 | 280-1280 | 280-1280 | 280-1280 |
| Distance between two column | mm | 2700 | 2700 | 2700 | 2700 |
| Leadscrew diameter | mm | 80/63/50 | 80/63/50 | 80/63/50 | 100/63/50 |
| Linear guideway width | mm | 55/55/Rectangle | 55/55/Rectangle | 55/55/Rectangle | 55/55/Rectangle |
| Worktable Length | mm | 3000 | 4000 | 5000 | 6000 |
| Worktable width | mm | 2300 | 2300 | 2300 | 2300 |
| T slot qty-width*distance | mm | 11-28*200 | 11-28*200 | 11-28*200 | 11-28*200 |
| Max loading capacity | Ton | 10 | 12 | 15 | 18 |
| Spindle speed | rpm | 6000/belt | 6000/belt | 6000/belt | 6000/belt |
| Spindle motor power | kw | 22 | 22 | 22 | 22 |
| Fast moving speed | m/min | 12/12/10 | 12/12/10 | 10/10/10 | 10/10/10 |
| Cutting speed | mm/min | 1-8000 | 1-8000 | 1-8000 | 1-8000 |
| Spindle taper | BT50 | BT50 | BT50 | BT50 | |
| Feed motor power | kw | 7/4.5/4.5 | 7/4.5/4.5 | 7/4.5/4.5 | 7/4.5/4.5 |
| X/Y/Z axsis motor torque | Nm | 50/40/30 | 50/40/30 | 50/40/30 | 50/40/30 |
| Tool Magazine Capacity | pcs | Disc/24 | Disc/24 | Disc/24 | Disc/24 |
| Positioning accuracy | mm | 0.020/0.020/0.018 | 0.020/0.020/0.018 | 0.025/0.020/0.018 | 0.025/0.020/0.018 |
| Repeat accuracy | mm | 0.012/0.012/0.012 | 0.012/0.012/0.012 | 0.015/0.012/0.012 | 0.015/0.012/0.012 |
| Length | mm | 7750 | 10200 | 12500 | 145000 |
| Width | mm | 5140 | 5500 | 5500 | 5500 |
| Height | mm | 4100 | 5300 | 5800 | 6000 |
| Weight | kg | 33000 | 360000 | 42000 | 53000 |
| Standard accessories: |
| Mitsubishi M80B controller |
| Spindle speed 6000rpm belt type |
| 24 tools disc type |
| Screw type chip conveyor & chip bucket *2 |
| Chain type chip conveyor & chip bucket *1 |
| Nitrogen balance cylinder |
| Air conditioner in cabinet |
| Air gun+Water gun |
| Automatic lubricating system |
| 2-Axis linear guideway from Taiwan Hiwin |
| Ball leadscrew from Taiwan Hiwin |
| Levelling pad,nut and bolts |
| Tools and tool box |
| Optional accessories: |
| Spindle oil cooler |
| CTS 20bar |
| CTS 30bar |
| Renishaw tool probe TS27R |
| Renishaw workpiece measurement device OMP60 |
| Gear head |
| Manual angle head |
| Auto angle head |
| Chain type ATC 32 tools |
| Chain type ATC 40 tools |
| HEIDENHAIN scales/1m |
| 4TH Axis rotary table 255mm+tail stock+hydraulic station |
| 5TH Axis rotary table 255mm+hydraulic station |
Company information
Packaging & Shipping
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Double Column
Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
