500W Metal Surface Laser Cleaning Machine Rust Spots Oxid Layer Paint Remove Powerful Cleaning

Product Description

Product Description

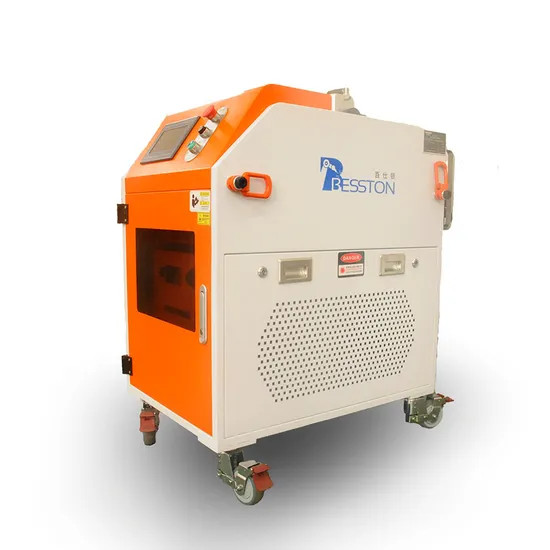

500W Pulse laser cleaning machine
Laser cleaning is an emerging cleaning method in industrial cleaning. Our company's LCP-500 (standard product) laser cleaning equipment adopts high peak power pulse lasers, imported high-speed scanning systems, high-precision control systems, and power supplies from well-known domestic enterprises. The whole machine is stable, reliable, and has good performance, with characteristics such as ultra portability, high efficiency, and high cost-effectiveness.
Advantage
Compared to traditional cleaning methods, laser cleaning has the following advantages:
1. Safe, non-contact, and substrate undamaged.
2. Environmental protection, does not generate secondary pollution, and the removed substances can be recycled;
3. Precise and controllable, optional zone cleaning, and micrometer level precision control can also be achieved in the thickness direction;
4. Ultra high cost-effectiveness, laser cleaning equipment uses no consumables and only consumes electricity;
Strong applicability and maneuverability, can be handheld, and can also be integrated into automation.
Product usage, characteristics, and scope of application
1. Purpose: The LCP-500 laser cleaning equipment can be used for cleaning various metal surfaces with localized rust, paint, coatings, oil stains, oxide films, and other pollutants. It can also be used for cleaning non-metallic substrate surfaces such as ceramics, glass, and composite materials.
2. Features: LCP-500 laser cleaning machine equipment weighs 180kg, with a handheld head of about 2kg, lightweight and convenient, equipped with a shoulder strap to reduce the burden on operators; Equipped with universal wheels for easy equipment movement; Suitable for removing pollutants such as paint and oil stains, it can reduce damage to the substrate, set up multiple scanning patterns, and ensure cleaning effectiveness for complex working conditions. It is consumable free, environmentally friendly, and has ultra-high cost-effectiveness.
3. Scope of application: LCP-500 laser cleaning equipment can be applied to the fields of aerospace, rail transportation, automobile manufacturing, marine vessels, electronic microfabrication, food processing, stainless steel and aluminum alloy products, and mold processing. Typical application scenarios include cleaning of natural oxide films on aluminum alloys before welding, cleaning of black ash oxides on battery trays after welding, cleaning of welds on train bogies before non-destructive testing, cleaning of automotive sheet metal parts before refurbishment, cleaning of small holes and grooves in steel components that cannot be reached by steel wire brushes, etc.
Product Parameters

PRODUCT MODEL	LCP-500
Average laser power	500W
Laser center wavelength	1064 nm
Maximum single pulse energy	15mJ
beam quality factor	M2<12
Fiber Length	5m
Power regulation range	Adjustable from 10% to 100%
Laser pulse frequency	Adjustable from 5kHz to 200kHz
Field lens model	F254
scan pattern	Two dimensional, multiple options available
SCAN WIDTH	Length: Adjustable from 5mm to 100mm Width: adjustable from 5mm to 100mm (Customized field mirrors are required for larger widths)
Minimum bending radius of optical fiber	150mm
Instability of laser output	<5%
Cooling method	water-cooling
Polarization direction	arbitrary
Guide laser function	have
Anti high reflectivity function	have
The above parameters are for reference only, please refer to the actual situation

LCP-500General characteristic parameters of laser cleaning machine

PRODUCT MODEL	LCP-500
net weight	180kg
Cleaning hair type	Two dimensional handheld cleaning hair
Cleaning head weight	2kg
Chassis size	L913mm×W573mm×H881mm
Supply Voltage	AC 220±10%V
mains frequency	50Hz
Working temperature range	0ºC ~ 40ºC
Storage temperature range	-10ºC ~ 60ºC
Power consumption @ 25 ºC	<4000W
