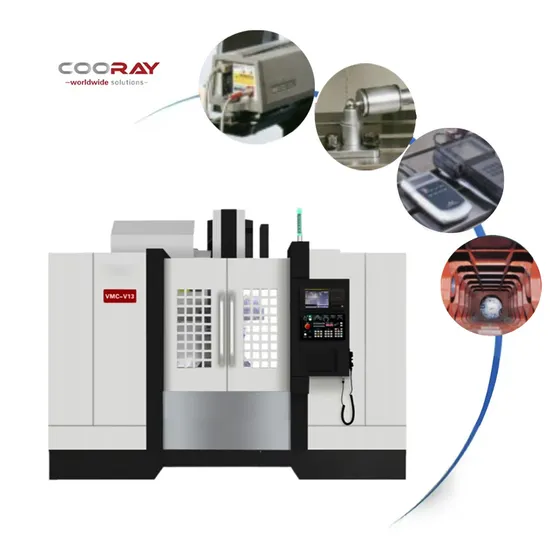

Cooray Cr-Vmc Three-Axis Line Rail Machining Cernter Vertical Machining Center
| US$50,000.00-90,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
THREE-AXIS LINE RAIL MACHINING CERNTER
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Condition
New
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Core Components
Bearing, Motor
Transport Package
The Two Sides Negotiate Logistics.
Trademark
COORAY
Origin
China
HS Code
84609090
Production Capacity
5000
Packaging & Delivery
Package Size
360.00cm * 310.00cm * 285.00cm
Package Gross Weight
8500.000kg
Product Description
Product DescriptionMachine data/model | Unit | VMC-V8 | VMC-V855 | VMC-V11 | VMC-V13 | |
| x/Y/Z axistravel | mm | 800/500/500 | 800/550/550 | 1100/600/600 | 1300/700/700 | |
| Travel | Distance from spindlenose to table surface | mm | 150-650 | 120-670 | 120-720 | 120-820 |
| Distancefrom spindlecenterto column guidesurface | mm | 558 | 610 | 660 | 760 | |
Workbench | Workbenchsize | mm | 1050×500 | 1050×550 | 1200×600 | 1400×700 |
| Workbench load-bearing | kg | 450 | 600 | 800 | 800 | |
| T-slot(number of slot-sizexspacing) | mm | 5-18×90 | 5-18×90 | 5-18×100 | 5-18×100 | |
Spindle | Spindle taper specifications | - | BT40 | BT40 | BT40 | BT40 |
| Spindle speed(Optional) | rpm | 12000/15000 | 12000/15000 | 12000/15000 | 12000/15000 | |
| Spindle motor power | kw | 7.5/11 | 7.5/11 | 11 | 11 | |
Three-axis parameters | Three-axis motor power(XY/Z) | kw | 1.8/1.8/3.0 | 1.8/1.8/3.0 | 3.0/3.0/3.0 | 3.0/3.0/3.0 |
| X/Y/Zaxis rapid moving speed | m/min | 48/48/48 | 48/48/48 | 36/36/36 | 36/36/36 | |
| Cutting feed speed | mm/min | 0-15000 | 0-15000 | 0-15000 | 0-15000 | |
| Position | Position accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Repeated position accuracy | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 | |
Magazine | Magazine capacity | Put | 24 | 24 | 24 | 24 |
| The maximum weight of cutter | kg | 7 | 7 | 7 | 7 | |
| The maximum length of cutter | mm | 300 | 300 | 300 | 300 | |
| Cutter diameter(ful/interspace) | mm | 80/150 | 80/150 | 80/150 | 80/150 | |
| Magazine form | - | Disc type | Disc type | Disc type | Disc type | |
Other | Pressure demand | Kg/cm² | ≥6 | ≥6 | ≥6 | ≥6 |
| Machine weight | Kg | 5500 | 5800 | 7500 | 8500 | |
| Machine size(length×width ×height) | m | 2.5×2.5×2.7 | 2.6×2.5×2.7 | 3.2×2.7×2.85 | 3.6×3.1×2.85 | |
