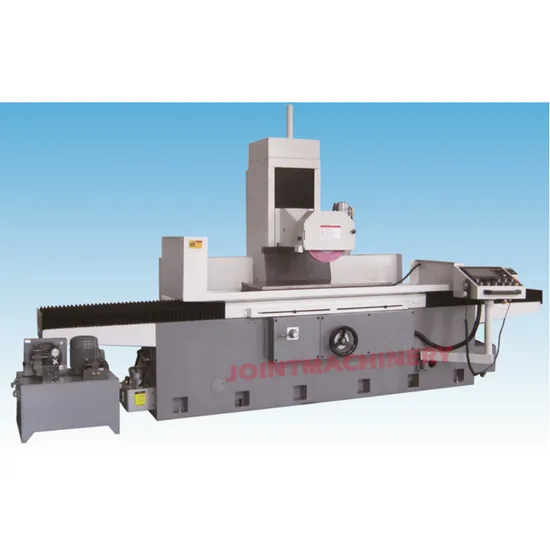

6010ahr High-Quality Precision Hydraulic Surface Grinding Machine for Metal

Product Description

1. Unmatched Structural Integrity
The foundation of this machine boasts an exceptionally robust design, exhibiting high strength, exceptional rigidity, and unparalleled stability. The principal castings are crafted from high-strength, wear-resistant cast iron. Through a series of comprehensive aging treatments, all internal stresses within the machine are meticulously eradicated. The guide rails, renowned for their wear resistance, ensure sustained precision and an extended lifespan. This formidable foundation guarantees enduring performance and reliability.
2.Premium Grinding Head Excellence
This extraordinary machine is equipped with a high-precision spindle system, expertly produced by a renowned Taiwanese manufacturer with a global reputation for excellence. Utilizing P4-level ultra-precision bearings, the spindle maintains a taper end deflection within a minuscule 2µm. It features a V-3-grade low-vibration motor, ensuring high-speed operation with minimal noise and zero vibrations. Boasting an impressive load-bearing capacity, this machine is expertly designed for heavy-duty cutting and a wide array of molding grinding applications.
3.Precision-Engineered Feed System
The advanced slides for front, rear, left, and right movements are meticulously crafted, utilizing high-grade imported wear-resistant guide rail sheets, TUR CITE-B. Precision scraping ensures remarkable accuracy. The column and spindle head guide rails are precisely matched for superior performance, ideal for precision-forming grinding across diverse groove specifications.
4.Sophisticated Automatic Lubrication
With the initiation of the spindle, the lubrication pump is activated, automatically lubricating all screws and sliding surfaces. This process significantly reduces wear, thereby enhancing working precision and prolonging operational lifespan.
5.Comprehensive Dust Protection
Strategically placed dust-proof components are set between all moving parts. Sheet labyrinth rubber guards meticulously protect the guide rails, ensuring that interiors remain both dust-free and water-free.

1. Precision Grinding Head
Featuring a manual grinding head, it is equipped with a rapid lifting mechanism and a built-in motor. The spindle is designed for outstanding rigidity and precision, ensuring superior grinding results.
2. Efficient Electromagnetic Chuck
This user-friendly electromagnetic chuck enhances operational efficiency, saving valuable time and offering continuous usage for over 20 hours, making it an excellent choice for demanding tasks.
3. Premium Metal Hand Wheel
This high-precision metal feed handwheel ensures effortless control. Its superior grinding model delivers an impressive accuracy level of 0.002MM, setting new standards in precision.
4. Advanced Double V Guide Rail
An innovative double V guide rail is utilized longitudinally, while a single V flat guide rail is used laterally. Combined with hydraulic drive, this setup guarantees exceptional precision and reliability.
5. Durable Resin Sand Cast Iron Body
The meticulously crafted castings offer remarkable stability and strength. Through artificial aging treatment, they ensure the dimensional accuracy of castings, promising optimized finishing and precision.
6010AHR High-Quality Precision Hydraulic Surface Grinding Machine for Metal

Model			6010AHR
Table size		mm	1000*600
X axis travel		mm	1150
Y axis travel		mm	640
Table side way			Slide way
Max distance from spindle center to working table		mm	650
Auto crossward feed			0.5-10
Crossward feed of hand wheel		1 Rev	5
		1 Div	0.02
Auto vertical feed			-
Vertical rapid moving feed			220
Vertical feed of hand wheel		1 Rev	0.2
		1 Div	0.001
Rotation speed	50HZ	rpm	1450
	60HZ	rpm	1750
Grinding wheel size			Φ400×(20-50)×127
Spindle motor			15*4
Hydraulic motor			7.5*6
Crossward driven motor			0.2*4
Vertical driven motor			0.5-4
Coolant pump motor			0.12*2
Dust-clean motor			-
Dimension (L*W*H)		mm	2350*4500*2400
Net weight		kg	7000
