Ca-1325 CO2 150W 130W High Quality Balsa Wood Laser Cutting Machine

Product Description

Product Description

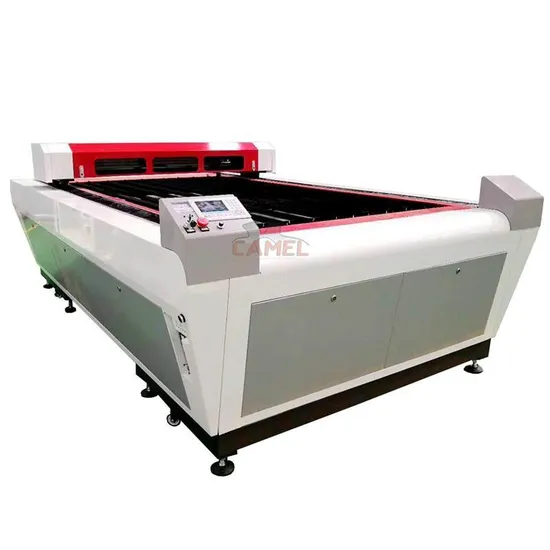

CA-1325 co2 150w 130w high quality balsa wood laser cutting machine
Specification:
1.USB cable to transfer data and offline DSP control system are both available.
2.Our three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, stability and effectiveness
3.Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipment manufacturing industry for years, extending the life of the laser tube.
4.It uses professional step motor and driver system. Mirror and lens are made of imported fibrous material, which can endure high temperature.

Detailed Photos
Details of Co2 laser cutting machine:
Product Parameters
Parameter of Co2 laser cutting machine:

Type	CA-1325
Engraving Area	1300*2500mm
Laser Power(Reci)	80/100/130/150W/180W
Laser Type	CO2 Laser Tube
Engraving speed	0~60000mm/min
Cutting speed	0~36000mm/min
Resetting positioning accuracy	<0.01mm
Cutting depth	Acryl 0-25mm(other depths depend on other materials)
Minimum Shaping Character	1.5×1.5mm
Power supply	220V±10% 50HZ or 110V±10% 60HZ
Gross power	1200W
Software supported	ArtCut, CorelDraw, PhotoShop, AutoCAD
Graphic format supported	PLT,DXF,BMP,JPG,GIF,PGN,TIF
Engraver for Curve surfaces (Yes/No)	YES (we can add an Rotary attachment on the Laser Engrave/Cutting Machine, then the machine can engrave on Cylinder)
Water Cooling: (Yes / No)	Yes
Maximum Height of Materials to Engrave (mm)	400mm(Up and down by motor)
Laser Tube (life hours)	5000-10000hours
Assistant Equipment	Water pump	Exhaust Fan	Flat bed worktable
Optional Spare Parts	100W/130W/150W Tube	Rotary System	Cooling water system	Auto up and down table
Recommended Spare Parts / Consumables	Laser Tube and Lens

Samples
Application:
Applicable materials: acrylic,wood, MDF,bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries: advertisement, gift, shoes, toys, sign making,computers, garments, model cutting, building, packaging, paper industry
Samples:
Hot Product
Company Profile
Packaging & Shipping


FAQ
Q1: How to choose a suitable machine?You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.Q2: This is the first time I buy the machine, is it easy to operate?We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.Q3: Can you customize the machine for me?Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.Q4: What is the guarantee? In case the machine break down?The machine has 2 year guarantee, fail parts will be replaced for free if the machine under "normal operation".Q5: How about the documents after shipment?We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other certificates required by clients.Q6: Delivery time?For standard machine, it would be 7-10 working days; for non-standard machine, it would be 20 - 30 working days.Q7: How is the payment?Normally we accept T/T or L/C, if you like other terms, tell us in advance.Q8: Do you arrange the shipment for me?For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.Q9: How is the packing?Step1: water proof wrapping film with foam protection in each corner.Step2: Solid seaworthy wood box package with steel belt.Step3: Save space as much as possible for container loading.
