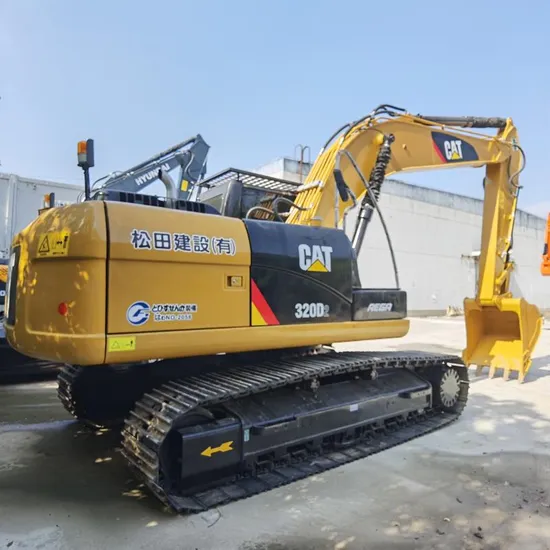

Used Original Japan Caterpillar 320 Excavator Second Hand Cat 320d 20 Ton Digger 320b 320c 320d

Product Description

Product Parameters
Original Japan Used Caterpillar Excavator Cat 320d Second Hand 20 Ton Crawler Hydraulic Excavator

Specifications
Bucket	Backhoe
Tonnage (tons)	20
Machine operating weight (kg)	21100
Bucket capacity (m³)	1
Boom length (mm)	5700
Arm length (mm)	2500/2900
Performance
Slewing speed (rpm)	10.9
Slewing torque (Nm)	61.8
Travel speed (km/h)	5.4
Gradability (%)	70/35°
Bucket digging force (kN)	125
Arm digging force (kN)	104
Maximum traction force (kN)	205
Power system
Engine model	Cat C7.1
Rated power (kw/rpm)	112/1800
Displacement (L)	7.01
Number of cylinders (pieces)	6
Cylinder diameter × stroke (mm)	105 × 135
Hydraulic system
Maximum flow of main pump (l/min)	404
Pilot pump flow (L/min)	32.4
Pilot oil circuit (MPa)	39
Working hydraulic oil circuit (Mpa)	34.3
Travel hydraulic circuit (Mpa)	35
Swing hydraulic circuit (Mpa)	25
Main overflow setting pressure (Mpa)	35
Oil capacity
Fuel tank (L)	410
Hydraulic oil tank (L)	138
Hydraulic system (L)	260
Engine oil replacement amount (L)	22
Coolant (L )	25
Main dimensions
Total length for transport (mm)	9460
Total width for transport (mm)	2800
Total height for transport (mm)	3030
Total height of cab (mm)	2950
Onboard width (mm)	2800
Track ground length (mm)	3270
Total length of track (mm)	4080
Track shoe width (mm)	600/700/790
Total track width (mm)	2800
Track gauge (mm)	2200
Minimum ground clearance (mm )	450
Counterweight ground clearance (mm)	1020
Rear end turning radius (mm )	2750
Operating range
Maximum digging depth (mm)	6720
Maximum digging height (mm)	9490
Maximum unloading height (mm)	6490
Maximum vertical digging depth (mm)	5690
Maximum effective digging depth (mm)	6380

Detailed Photos



Company Profile

We are Shanghai Dreamer Group Co., Ltd which has been being regarded as one of the top sales corporations specialize in selling used construction machinery & used earth-moving equipment in China .We provide second-hand equipments including excavator, loader, bulldozer, grader, road roller, truck crane dump truck and so on .
Our history can be traced back to the 1987 when the two founders--- Mr Liang and Mr Li ,Came to Shanghai and started to focus at repairing various kinds of construction machines.

In 1990s, we started to sell used construction equipment in domestic market.

After 2002, china government abolished the restrictions on used construction machinery importing and exporting, we started to expand business abroad. Our products were sold to Southeast Asia, South America, Middle East, Africa, Oceania and other regions. Our customers speak highly of our products and we built good reputation in the field.

Packaging & Shipping
1. Bulk/Ro-Ro/Container
2. Wordwide shipping will be okay.
3. FOB,CRF,CIF are all acceptable.
We have professional shipping agent to do the whole shipping process for us. we can ship the machine in bulk cargo as a whole unit or we can load it in a container with dismantling on some parts of the machine, or we can ship it on flat rack. We can choose the way as your requirement.
We have many ways of delivery. Safe, fast and trust
1.Container: which is cheapest and fast.
2.Bulk cargo ship: which is better for bigger construction equipment
3.Flat rack ship: which is better for bigger machine and also no need to dismantle
4.RO RO ship: which is good for every machine and faster.
You can depend on your own requires to choose one favorite.
Delivery: Within 5 working days after confirmation
Payment term: T/T, Western Union, Paypal, L/C
Trade term: EXW or FOB or CFR or CIF or CPT or CIP
Packing detail: pallet
Delivery time:It depend on the purchasing quantity and the stock condition, if the warehouse have, we may arrange the delivery in 2-4 days, or a few days after receiving the deposit.
