Qk1325X5m CNC Pipe Thread Lathe for Oilfield Industrial

Product Description

QK1325X5M CNC pipe thread lathe for oilfield industrial
CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric,inch,module,DP and taper threads,as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.This series lathe machine is widely used in industries including petroleum exploiting,minerals mining,chemical piping. it is high-efficient and repairing drilling pipe,drilling rod,thread coupling and so on.
FEATURES
1.Big spindle bore and double chuck to ensure process big diameter pipe
2.One-piece bed adopts high strength iron to ensure rigidity and precision
3.ultrasonic frequency quenched guide-ways ensure good wear-resistance.
4. carriage and guide way contact surface use Turcite B to maintain accuracy.

Product Parameters

SPECIFICATION		UNIT	QK1325		QK1327C
			Manual	HYD	Manual	HYD
Capacity	Swing over bed	mm	800-1000		800-1000
	Swing over coss slide	mm	480-680		480-680
	Distance between center	mm	1000-6000		1000-6000
	pipe threading range	mm	50-250		50-270
	Guideway width	mm	600		600
	Max load capacity	T	4		4
Spindle	Spindle bore	mm	255		280
	Spindle speed steps	-	VF.4 steps	HYD.4 steps	VF.4 steps		HYD.4 steps
	Spindle speed range	pm	20x420		20x420
	Chuck	mm	φ630 four jaw independent		φ680 four jaw independent
Turret	Turret /tool post	-	NC turret4 position		NC turret 4posticn
	Tool shank size	mm	40x40		0x40
Feed	X axis travel	nm	420/500		420/500
	Z axis travel	m	1000-6000		1000-6000
	X axis rapid traverse	mmymin	4000		4000
	Z axis rapid traverse	rmin	6000		6000
Tailstock	Tailstock quill diameter	mm	φ120		φ120
	Tailstock quill taper		MT6		MT6
	Tailstock quill travel	mm	250		250
Motor	main spindle motor	kW	15		15
	Coolant pump motor	kW	0.25		0.25
Dimension	WidthxHeight	mm	1930x1900		1930×1900
	Length	nm	3600-8600		3600-8600
Weight	Net weight		6-9.5		6.2-9.7

Configuration :
Standard Accessories
Siemens controller,NC turret,automatic lubrication, coolant pump,semi-shield
OPTIONAL ACCESSORIES
Fanuc or other brand CNC controller,quick change tool post, hydraulic turret or power turret,pneumatic chuck,hydraulic tailstock, full-shield
pay term
Shipped per: BY SHIP
Payment Terms: 30% down payment T/T before order, and 70% TT before exfactory.
Price Terms: FOB Qingdao, china
Delivery Time:Eighty days since received down payment within a week at PI date
Warrenty period of main machines: One years, free part within one year if normal use.

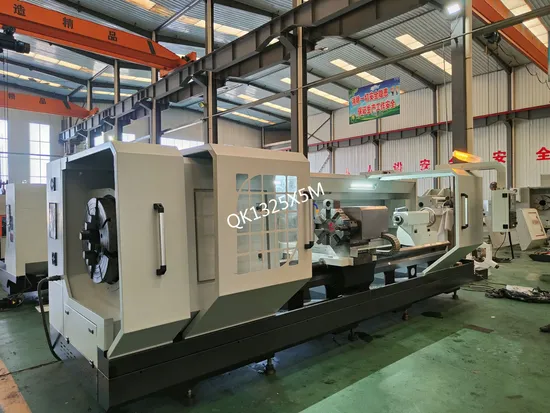

Detailed Photos
