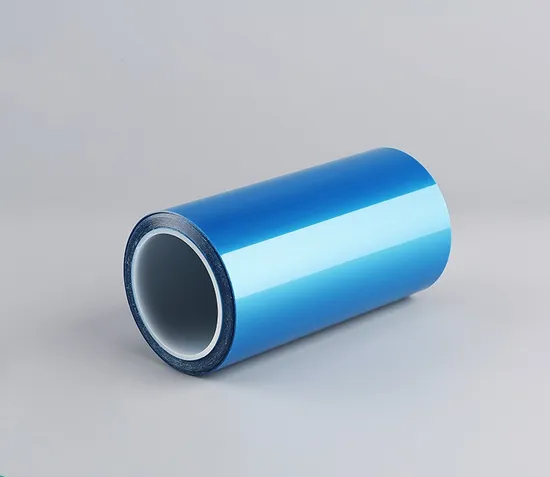

75um Dual-Silicon for Printing Die Cutting Punching Processing Blue Pet Release Film

Product Description

Our Advantages
Product composition
This dual-silicon anti-release film is based on blue PET (polyester film), coated with ultra-light organic silicone oil on both sides for anti-static treatment, with a surface resistivity of 10 ^ 6~10 ^ 10 Ω. m.
Product characteristics
1. The coating is uniform, and the floating change of the double-sided release force is small;
2. High cleanliness for production and processing in a thousand-class purification environment;
3. The surface resistivity reaches 10 ^ 6~10 ^ 10 Ω. m, with stable anti-static interference effect;
4. The appearance is free of scratches, good flatness, coating lines, wrinkles, dirt and crystal spots;
5. High residual adhesion rate (≥ 90%), little silicon transfer, no impact on the performance of the bonding material, no pollution;

Test items	Standard value	Testing standards	Notes
Base material	PET	ASTM D3652
Color	Blue
Appearance	No dirt, wrinkles, scratches	Visualization
Thickness	75um	Dial gauge thickness testing machine
release agent	silicone oil
24H180 degree release force	3-6g/in	FTM30, new TESA7475	Double sided release
Residual adhesion rate	≥90%	Nippon 31B tape
tensile strength	MD	188MPa	ASTM D882
	TD	215MPa
elongation at break	MD	198%	ASTM D882
	TD	147%
The above test data is the average test value, not a guaranteed value, for reference only, and not used as an acceptance standard

Product specification
1. Width: 1060mm (can be customized according to customer requirements)
2. Length: 200-2000m (slitting and rewinding according to customer requirements)
3. Inner diameter of coil core (paper tube or plastic tube): 3 inches (76.2 mm) or 6 inches (152.4 mm)
https://re-phar.en.made-in-china.com/contact-info.html
Scope of application
This double-sided release and single-sided anti-static blue PET ultra-light release film (also known as dual-silicon single-sided anti-static ultra-light release film in the market) is suitable for the application in some special fields of die-cutting and stamping.
Product packaging
1. Products are generally packed in cartons and wooden pallets
2. Each box of products has a shipping label, and each pallet has a product list
3. It can also be packaged according to the customer agreement
instructions
1. Static electricity may be generated during unwinding or rewinding during use. The electrostatic layer will damage the release layer and lead to poor peeling. If necessary, anti-static treatment can be carried out on the back or static elimination equipment can be used to eliminate static electricity.
2. In order to obtain the best use effect, it is recommended to use this product within 6 months from the purchase date;
3. It must be retested before use after expiration;
4. Recommended storage conditions: avoid direct sunlight, store under the indoor ambient temperature of 25 ºC ± 2 ºC and humidity of 60% ± 10%.
5. When using this product, please fully study whether the purpose (purpose, condition) is suitable or not in advance, and decide whether the product conforms to its standard by yourself. The content beyond the specification cannot be guaranteed. Company Profile
About us
ShenZhen RuiHua coating Technology Co., Ltd. was established in 2017.It is a comprehensive high-tech enterprise specializing in the R&D, production and sales of high-end adhesive materials, thermally conductive materials, protective films and precision die-cutting.It has a number of utility model patents and passed I S O 9 0 0 1 quality Management system , with rich research and development technology, advanced intelligent high-speed coating machine, rewinding machine,laminating machine, slitting machine and die-cutting combination line, rich coating Fabric, die-cutting technology and first-class testing equipment; its series of products have passed third-party certification and meet environmental protection standards in all walks of life; products are widely used in electronics, circuit boards, automobiles, computers, batteries, medicine, mobile phones, spraying, insulation , Die-cutting, electroplating, home appliances and other fields.
FAQ
Q: Are you a manufacturers or trading company?
A: We are a manufacturers,welcome to visit,we can show you our company and hope for a long time corporation with you.
Q: How many the warranty?
A: Our warranty is 90 days after goods have been received.
Q: Do you provide free sample?
A: Yes, we can provide two rolls of samples for free, but you need to cover the courier cost.
Q: What is your payment method ?
A: We prefer to T/T,30% deposit and the balance 70% paid off before shipment.
Q: What kind of information we need before place your order?
A: Thickness, Width, Length, Application, Adhesive type,Color,Peeling force.
