Single Pack Pocket Tissue Packing Machine

Product Description

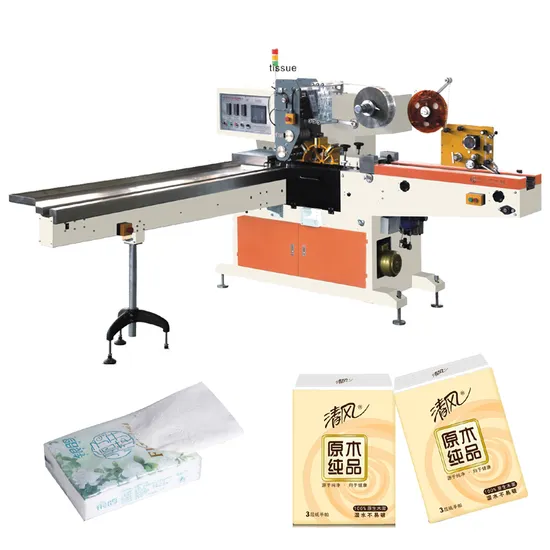

Full Automatic Mini Handkerchief Pocket Tissue Paper Packing Machine

Technical Parameters

XB202 Automatic pocket tissue paper packing machine
Machine size(mm)	2840L*2650W*1720H	Air pressure(Mpa)	0.5-0.6(user supplied)
Production size(mm)	(70-110)L*(50-55)W*(20-28)H	Voltage(Can be ordered)	380V 50Hz (3-phase)
Speed(bag/min)	70-110	Machine weight(kg)	About 1500
power(kw)	4.68	Packing material	CPP PE and So on

Main features
1: Adopts advance control of SIEMENS' PLC programming and touch screen to set up.
2: Adopts trouble tracing and alarm system, the trouble can be found and solved more easily.
3: The driving system adopts advance variable frequency speed regulating control and drive with stepping motor, has the features of accurate control and locating compact matched movement.
4: With the automatic oil-filling circular lubricating system, the use life of the machine parts have been extended greatly.
5: With adopting static electricity removing device,the packing effect is more perfectible.
6: With the intelligent tem-controller, the temperature adjustment is flexible.
7: Can be equipped with auto-perforating device, which is for various tear-off outside.
8: Automatically print production date and the location can be adjusted from up to down,from left to right.
Automatic Mini Handkerchief Pocket Tissue Production Line
Technical Parameters for Automatic Pocket Tissue Production Line

XHC-SP-B Automatic pocket tissue packing machine
Machine size				3850*692*1360mm	Folding way	1/4
Width of tissue				180-210	Dia. of tissue	<=1200mm
Speed				800Pcs/min	Counting	Electronic
Total power				5.5kw	Embossing	Steel to rubber/steel to steel/steel to paper (optional)
XB202 Automatic pocket tissue packing machine
Machine size(mm)				2840L*2650W*1720H	Air pressure(Mpa)	0.5-0.6Mpa(User supplied)
Production size(mm)				(70-110)L*(50-55)W*(20-28)H	Voltage	380V 50-60Hz(Three phase)
Speed(bag/min)				70-110bags/min	Machine weight	about1500kg
Power(kw)				4.68kw	Packing material	CPP PE CPP PE and so on
TB 380A Automatic 10 in 1 Handkerchief Tissue Bundling Machine
Machine size				2500*3200*1550mm	Air pressure	0.5-0.6Mpa(User supplied)
Production size				(150-330)L*(70-150)W*(20-84)H	Voltage	380V 50-60Hz(Three phase)
Speed(bags/min)				8-20bags/min	Machine weight	about 1200kg
Power(KW)				3.50kw	Packing material	CPP PE CPP PE and so on

Main Features
1 Automatic produce process, enhance production efficiency and reduce labor cost.
2 Adopts import photoelectric switches to control the machine more exactly.
3 Automatic plastic film packing, adopt the router packing moulds to make the shape square.
4 Photoelectric tracing function, while without feeding, there won't be packing, it helps to save plastic film.
5 Auto-stop while the paper gets truck, to reduce degraded product.
6 Adjustable packing parts, it's easy to change different size.
