Ultrasonic Pulse Velocity and Rebound Hammer Testing for Concrete

Product Description

Product Description

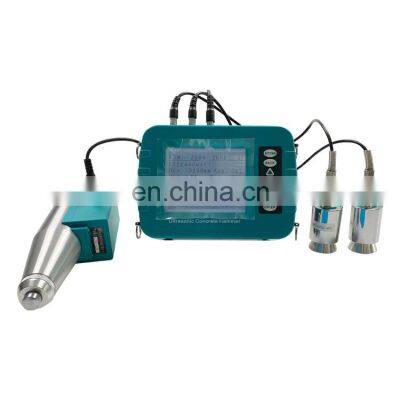

Ultrasonic Concrete Rebound HammerProduct DescriptionPortable Ultrasonic Concrete Detector is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.ParametersHost parameterWaterproof level: IP65 Screen size: 5inches Volume: 195x140x45mm Weight: 0.85kgUltrasonic indication error±0.1μsUltrasonic transducer operating frequency50KHzInstrument ultrasonic frequency range5Hz~500KHzData transmission modeWireless cloud transmission(optional)Springback apparatus nominal kinetic energy2.207JStiffness of Spring strike785.0±40.0(N/m)Impact length of ram75±0.3mmRebound value indication error＜±0.5Rebound value average steel anvil rate80±2Powder supply modeLarge capacity lithium battery, power supply time is more than 8 hoursWorking environment-10~40℃Packing specificationMaterial: engineering plastic Volume: 420x140x335mm Weight: 5.5kgMain Features1.New upgraded wireless cloud transmission function; 2.It adopts three anti- shell design waterproof, dustproof and shockproof; 3.Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic rebound method. It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient. 4.High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site; 5.Easy to use: full Chinese interface, with prompts, quick learning to conduct on-site testing; 6.Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.ApplicationContact USCangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?get our in-time reply via email or telephone or instant messenger;get best product with excellent quality and competitive price;One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service; feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost; easily make the payment via West Union, Paypal, T/T for small value order;
