Hydraulic Drive High Cost-Effective Aluminum Gravity Casting Machine Foundry Aluminum Equipment

Product Description

√ Over 20 Years == √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM==Short Delivery Time
Over 20 years==factory==exporting license==quality control==competitive price==own technology== delivery time==good & direct service
--------------------------------------------------------------------------------------------------------------------------------------------


Over 20 Years Factory, Own the Domestic First-Class Team and Professional Design Team, Integrating production, sales and after-sales, Own Exporting License, High Quility Products, Competitive Price, OEM, Timely Delivery.
Aluminum gravity die casting

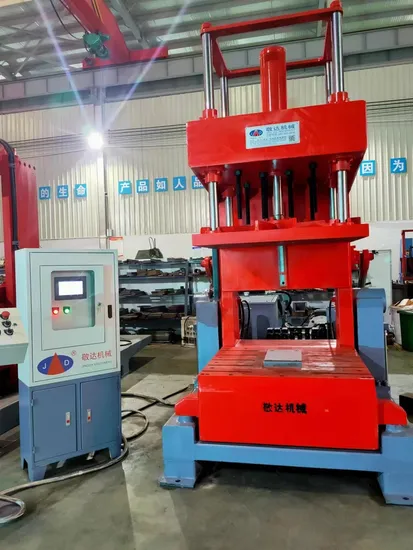

Item No.: JD-700-5k Tilt Gravity Die Casting Machine for aluminium.
1.PRODUCT DESCRIPTION
Aluminum gravity casting machine
2.ADVANTAGES OF PRODUCT
1) Configuration:hydraulic components are Taiwan brand, stainless steel tank.
2) Functions: Front casting.
3) Market and Quality: well accepted by nearly 70% domestic market customers, been in market for nearly 15 years.
4) Subsidiary materials: dregs remover and casting coating to work with.
3.ADVANTAGES OF COMPANY
1) Over 15 years experience in casting equipment. Know various casting workpiece problems.
2) First and most accepted China brand, with 70% domestic market customers, been exported to Taiwan, Japan, India, Indonesia, Philipines, Pakistan, Egypt, Bangledesh, Iran, Nepal, South America, Libya, Syria,Vietnam, Russia,South Afica, Turkey, Indonesia,Peru,etc..Integrity management,win-win cooperation
3) Most competitive price and quality.
4) Short delivery time.
5) Instant aftersale service in time.
6) Import and Export License.
7) OEM.
4.APPLICATION:
Widely used in Aluminum, Aluminum alloy casting for Plumbling Hardware, , Valves, electric power fittings,kitchen ware,Car Spares, etc..
5.SALE & AFTER-SALE SERVICE:
Warranty 1 year free.
Lifetime maintenance.
Afersale service: instant and fluenct English service, by on line chatting, or by phone, or other way by negotiation.
6.MAIN SPECIFICATION AND TECHNOLOGY PARAMETER

The maximum size mold frame	(700*600*780)mm
Hoist Cylinder Size :	Φ125/Φ60-400
The Maximum Opening/ Clamping Force:	90KN/120KN
Max Ejection force:	70KN
Maximum / Minimum Distance Between Top and Bottom Formwork:	395-795
Ejection Cylinder Size:	Φ110/Φ60-70
Back Core pulling cylinder size:	Φ100/Φ50-150
side core pulling cylinder size:	Φ100/Φ50-200
Table tilting angle:	0°-90°
Motor power:	7.5kw
Hydraulic system working pressure:	0~12MPa
Cooling way:	Water cooling
control:	manual and automatic
Machine size(L*W*H):	(3070*2270*1910)m
Machine weight:	3500kgs

7. CASTING PROCESS:
8.WHAT IS GRAVITY CASTING MACHINE?
The gravity casting machine is also called metal pouring machine, which is one of the casting machinery that produces casting products. Gravity casting machine generally refers to the machine that realizes the opening, closing and picking of metal mold gravity casting.
9.WHAT FEATURES DOES MACHINE HAVE?
1)Circuits are all controlled by PLC,data setting adopts touch screen, hydraulic components are Taiwan brand.
2)For gravity model casting with aluminum and zink alloy.
3)Front casting.
4)Individual cooling time of model is adjustable.
5)The dismantling ,assembly and cleaning of model are convenient.
6)Two functions of manual and automatic circulation are available.
7)Adjustment range of model is defined to make the using of different models easy and reduce requirement of model's exterior physical dimension.
8)This casting machine can store 100 sets model casting operation programs and you can set your password.
10.PACKAGING & SHIPPING
11.COMPANY PROFILE
Quanzhou jingda machinery co.,ltd
1)We are one manufacturer of metal foundry machinery and core shooter machinery in China.
2)We are production automatic molding machine, gravity die casting machine, compound CNC polishing machine , SPM machine(compound CNC drilling machine,CNC machining center etc.), furnace, core shooting machine, mixing sand machine and so on.
3)Our machines are extensively used in producing and machining foundry parts,metal castings,
plumbing fittings, sanitary ware,car spare parts,valve for brass, aluminium, zinc, iron cast production line and others please contact us!
4)We have professional technical support and after sale service. With a whole line foundry machines,good quality, reasonable prices and stylish designs.
5)Our machines really help a lot for our customers. Products are widely used in : electric power fittings, motorcycle parts,auto parts,new energy industry,electronics, electricals, high-voltage switches, engineering machinery, aerospace castings, fans, household appliances and other professional casting production lines.Reliable quality and excellent service help our company gain a good reputation from our customers. In addition to domestic sales, our products have obtained a good market share in Southeast Asia, Africa, South America, Middle East and other parts of the world.
12.FAQ
Q1. Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q2. Are you produce machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing which client want to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost.
Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Q7:Are you manufacturer or trade company?
A:We are manufacturer
Q8:What is your delivery time?
A:Commonly,we deliver within 35 days.
Q9:Can i visit your factory?
A:Sure,welcome you.
Our address:High end Equipment Intelligent Manufacturing Park, Plant 1,Unit 4, No. 99, Pulang Village, Xiamei Town, Nanan City, Quanzhou City, Fujian Province, China.
Nearest airport:Quanzhou jinjiang Airport
