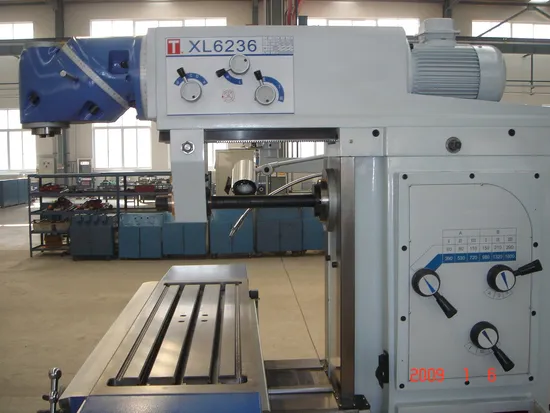

CE Standard Universal Milling Machine XL6236
Basic Info.
Model NO.
XL6236
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
W/Case
Specification
XK5032, XK5040
Trademark
Allway
Origin
China
HS Code
84595100
Production Capacity
1000PCS/Year
Product Description
Feature :Rectangular guideways
Universal cutter head with 2 levels can be adjusted to virtually any angle (HURON System)
Rapid feeds on all axes allow quick positioning
Control panel swivels for comfortable operation
Separate drives with gearbox for powerful material removal
Technical parameter:
| Specification | XL6236 |
| Spindle taper | 7:24 ISO40(V) |
| 7:24 ISO50(H) | |
| Distance from spindle center line to column surface | 350~850mm |
| Distance from spindle nose to worktable | 210~710mm |
| Distance from spindle center line to worktable | 0~500mm |
| Distance from spindle center line to arm | 175mm |
| Spindle speed | 11steps 35~1600r/min (V) |
| 12steps 60~1800r/min (H) | |
| Worktable size | 1250×360mm |
| Worktable travel Longitudinal | 1000X320X500mm |
| Worktable longitudinal/cross power feed | 8steps 15~370mm/min |
| Rapid:540mm/min | |
| Worktable elevating power feed | 590mm/min |
| "T"slot(Number/Width/Distance) | 3/18/80mm |
| Main motor | 3.0kw (V) 4kw (H) |
| Worktable power feed motor | 750w |
| Worktable elevating motor | 1.1kw |
| Overall dimension (L×W×H) | 2220×1790×2040mm |
| Net weight | 2400kg |
Standard accessories:
Collet chuck kits
Mill arbors
Draw bar
Working lamp
Coolant system
Some tools
Optional accessories:
58pcs Clamping kits
Universal dividing head (F11160A)
Rotary table TSL300
3 Axis DRO
Machine vice
