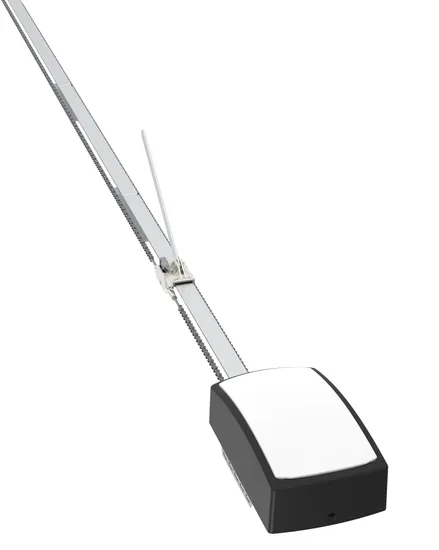

Powerful Lifting Force Residential Door Opener Motor Plus with Chain Drive T Rail
| US$60.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Plus serious
Excitation Mode
Series Excitation
Function
Driving, Open and Close Garage Door
Casing Protection
Protection Type
Number of Poles
6
Structure and Working Principle
Brush
Certification
Ce , Ce - Red, LVD, EMC,En12453&12445, TUV, C-Tick
Brand
OEM
Lifting Speed
160mm/S
Case Material
Plastic / Aluminum
Base Material
Steel
Color
Black / Grey / Aluminum / Customizing Available
Rail Length
3000~4000mm
Drive Option
Chain Drive / Belt Drive
Transport Package
Carton/ Wooden Box/ Pallet
Specification
600N / 1000 / 1200N
Trademark
OEM
Origin
China
HS Code
8501520000
Production Capacity
1000000sets / Year
Product Description
---------------------------------------------------------------
PLUS
600N / 1000N / 1200N
600N Speed / 1000N Speed
Home automation for garage doors
| Model | 600N / 600N Speed | 1000N / 1000N Speed | 1200N |
| Input voltage | 220-240V / 110-127V , 50-60Hz | ||
| Max. opening speed | 160mm/s or 200mm/s ( Speed model) | ||
| Max. door height | 2400-5000mm | ||
| Bottom base material | Metal | ||
| Drive mechanism | Chain/Belt | ||
| Max. door size | 10 m2 | 15 m2 | 18 m2 |
| Max. door load | 80 kg | 100 kg | 130 kg |
| Soft-start/stop | More Information Display |
| Automatic Closing Time Setting | Reversal Force Setting |
| Maintenance Alarm | Terminal Devices Supported |
| Transformer Overload Protection | 3 Min. L.E.D Off Delay |
| 433MHz/Rolling Code | Photo Cell ON/OFF Setting |
| Electronic Travel Limit Setting |
1, Losing traveling limit after hundreds operation?
2, Doors couldn't totally close or open after hundreds operation?
3, Openers need to be re-programed after hundreds operation?
All these won't happen to our openers, all because we have Less maintenance & Less traveling deviation with Longer lifetime
Build-in twin-encoder & Synchronizing device
Higher precision of position limit
No more external mechanical switch
Self-adjustment for different doors with different weights, springs and maintenance conditions.
