Stone Gold Ore Hammer Mill Crusher Machine Mining Equipment Stone Crusher Hammer Crusher Machine

Product Description

Product Description

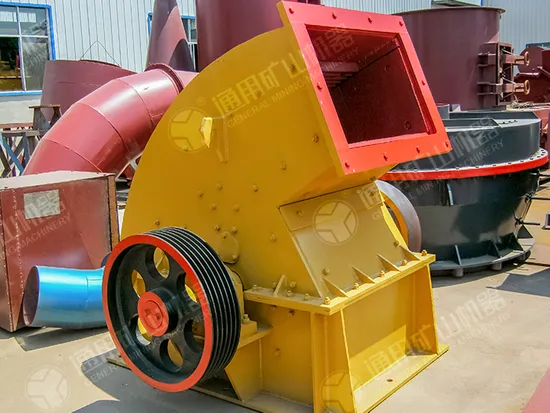

The hammer crusher (hammer mill ) crushes by the collisions between high-speed hammer and materiasl, and the hammer crusher(hammer mill) features are in its simple structure, high reduction ration, high efficiency , etc. The PC hammer crusher(hammer mill) were developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.
Working principles
The motor drives the rotor rotate of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet.And become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.
Features:
1. Inlet large, high crushing chamber adapted material hardness, block degree, the product powder less
2. Materials vacant, broken power consumption
3. New hammer, impact force
4. Hammer shaft mounted adjustable, hammer, long life
5. Grid size is adjustable, controllable particle size, particle shape is good
6. Chassis can be flipped, maintenance more convenient
7. Square shank bolts, impact resistance, wear and tear
8. Compact, machine rigidity
9. Fight structure, handling, easy to install
10. The machine shocks, counter, strike (rock stone) fragmentation functions in a high production efficiency, mechanical abrasion is small, the overall efficiency significantly, widely used in artificial sand.
After the material is crushed by the hammer crusher, it is sent to the vibrating screen for screening by the belt conveyor evenly and continuously. After screening, the qualified finished products are outputted separately via belt conveyor. Materials that do not meet the requirements are again conveyed to the hammer crusher for secondary crushing until the finished products meet the requirements.
If you would like information on the entire line , please click here to contact us.
Our hammer crusher can greatly reduce the operating costs. And it is of reliability and flexibility.The PC hammer crusher(hammermill) were developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic,construction material, road building, and petroleum & chemical industries.
Technical Parameter

Model	Rotate speed(r/m)	Max feeding size(mm)	Discharge size(mm)	Capacity(t/h)	Weight(t)	Motor power(kw)
PC-400×300	1450	≤200	≤25	8-15	0.8	11
PC-500×350	1250	≤210	≤25	12-20	1.2	15
PC-600×400	1000	≤250	≤30	15-30	1.5	22
PC-800×600	980	≤300	≤30	20-35	2.6	55
PC-800×800	980	≤350	≤35	20-50	3.5	75
PC-1000×800	1000	≤400	≤35	30-65	6	90

Our Customers Site

We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.
This is our stone production line in Bolivian!
The customer's requirements:
Raw material: grinite, capacity: 500 tons/hour, finished products: 0-10mm, 10-20mm, 20-30mm.
Equipment configuration: ZSW6000X1300 vibrating feeder, PE1000x1200 jaw crusher, 2 sets HP500 cone crusher, 4 sets 4YZS2470 vibrating screen.
This is our stone production line in Indonesia!
The customer's requirements:
raw material: marble, capacity: 400 tons/hour, finished products: 0-5mm, 5-16mm, 16-31mm.
Equipment configuration: 2xZSW490*130 vibrating feeder, 2 PE750x1060 jaw crusher, 2xPYD2200 cone crusher, 2x3YZS2460 vibrating screen, a VSI1140 sand making machine.
Company Profile
Since in 2004, Zhengzhou General Mining Machinery Co.,Ltd has been the professional manufacturer of Grinding Mill, crushers and sand making machines,etc. TYM is committed to helping more users around the world to obtain higher profits and faster return on value. Our main products are European Version Grinding Mill, Raymond Grinding Mill, High Pressure Suspension Roller Mill, Micro-powder Grinding Mill, Jaw Crushers, Impact Crushers, Hammer Crusher, Compound Crushers, Ball Mill, nine series of products with more than 30 kinds of specifications.
Our factory covers an area of 120,000 square meters and manufactures TYM brand Mining Machinery,has passed international ISO:9001, GOST and CE certification. Packaging & Shipping
The package of all equipment is accord with the standard protective measures.The packing is suitable for short and long distance transportation. The moisture proof, quake proof, protected against dampness, and rustproof protection measures were taken to ensure the machine shipping to customers safely. All the machine will be packaged by plastic film.
Large items will be wrapped in plastic film, such as jaw crusher, impact crusher, cone crusher, main mill, pipe, etc.
Small parts will be packed in wooden box, such as bolts, rubber sleeves, springs, etc Certifications

Our Services

Warranty
100% brand new when leaving the factory. The seller guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidance, but not exceed 15 months from date on which machine leaves the factory.
Pre-sale services:
(1) Device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program.
Sale services:
We will send technicians to you for guiding the equipment installation and commissioning and staff training.
Sales tracking :
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale services :
(1) Guiding customers' installation.
(2) On-site training of operators.
(3) Complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.
