Electric Motor Driven Rubber Lined Desulphurization Circulating Slurry Pump

Product Description

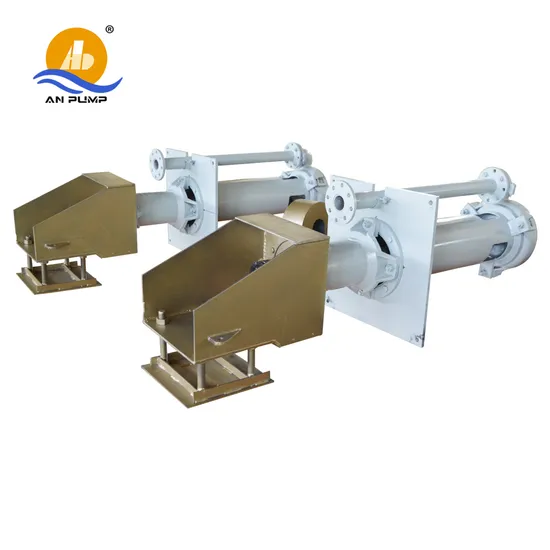

Vertical Slurry Pump
Product Description
Type LBP and LBPR pump are verticalcentrifugal sump slurry pumps submerged in sump to work. They are designed for delivering abrasive, large particle and high density slurry. These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.

All parts of type LBP pump immersed in liquid are lined with rubber outer liner. They are suited to transport non-edge-edge angle abrasion slurry. Wet parts of LBP pump are made of abrasive-resistant metal.

The type with 'L' is a sump pump of extension shaft series, which is suited for the working condition of deep level. The guide bearing construction is added to the pump on the the bases the standard pump, so the pump is with both more steady operation and wider application range, but flushing water should be attached to the guide bearing.
Features
1. flow passage components: this type of pump use wear resistant metal, impeller choose wear resistant metal or rubber.
2. Bearing components: we use grease lubrication. According to slag slurry pool liquid height, can choose different lengths of pump shaft or suction pipe.
3. Sealing: Doesn't need any shaft seal or shaft seal water. In suction volume insufficient condition also can work normally below.
Specification

Type	Material		Capacity (m3/h)	Head (m)	Particle SizeMax (mm)	Speed (rpm)	Power Max (kw)
	Liner	Impeller
40 LBP	M	M	6-50	4-29	12	1000-2200	15
40 LBP	R	R	5.8-64.8	5-54	12	1000-2200
65 LBP	M	M	14-120	4-33	15	700-1500	30
65 LBP	R	R	10.8-149	5-49.5	15	700-1500
100 LBP	M	M	15-330	4-37	32	500-1200	75
100 LBP	R	R	25-360	6-49	40	600-1200
150 LBP	M	M	36-648	5-37	43	500-1000	110
200 LBP	M	M	90-828	6-41	64	400-850	110
250 LBP	M	M	40-1206	7-36	64	400-750	200
Note: M=Metal material, R=Rubber material

Company Profile

FAQ
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.

Q2. What markets do your pumps export to?
Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, America and Africa are gradually improving.

Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision and accurate model selection.

Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.

Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
