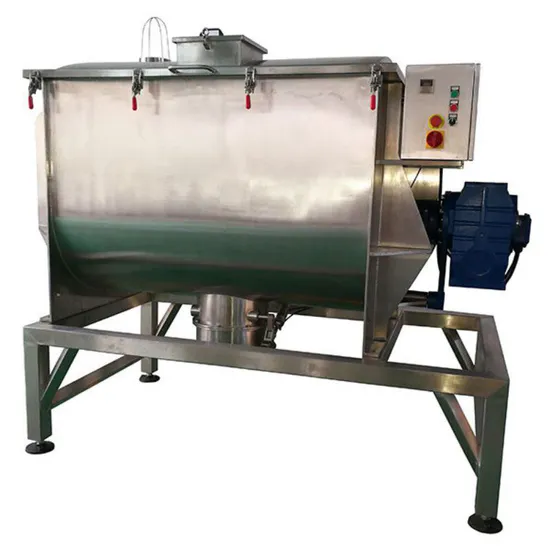

Industrial Ribbon Mixer Dp-1000 Food and Chemical Industry.

Product Description

Product Description
The Horizontal Screw Belt Mixer is a new type, high efficiency mixing equipment, are widely used in food and chemical industry.
Main features:
1. Horizontal tube body, inner & outer dual screw with special structure, running stable, best quality, low noise, long life, convenient installation, widly usage, with many kind of mixer structure, multiple function
2. Whole machine except for motor is made of stainless steel
3. With warm sheet, bearing great pressure, make easy-forming material into difficult forming after filling steam
4. For different mixing requirements, use different screw structure, rapid & thorough mixing
5. There is a split window in the body for cleaning
6. Load coefficient large, covering small surface
Detailed Photos
Product Parameters

Model	DP-80H	DP-200H	DP-300H	DP-500H	DP-1000H	DP-1500H	DP-2000H	DP-3000H
Effective Volume	80L	200L	300L	500L	1000L	1500L	2000L	3000L
Fully Volume	108L	284L	404L	692L	1286L	1835L	2475L	4000L
Turning Speed	35rpm	46rpm	46rpm	46rpm	46rpm	46rpm	46rpm	46rpm
Total Weight	180kg	250kg	350kg	500kg	700kg	1000kg	1300kg	2200KGS
Total Power	2.2kw	4kw	5.5kw	7.5kw	11kw	15kw	22kw	22KW
Length(TL)	1230	1370	1550	1773	2394	2715	3080	4270
Width(TW)	642	834	970	1100	1320	1397	1625	2200
Height(TH)	1540	1647	1655	1855	2187	2313	2453	2400
Length(BL)	650	888	1044	1219	1500	1800	2000	2300
Width(BW)	400	554	614	754	900	970	1068	1210
Height(BH)	470	637	697	835	1050	1155	1274	1200
(R)	200	277	307	377	450	485	534	600
Power Supply	3P AC208-415V 50/60Hz
