US$8,000.00-28,200.00
|
1 Set
(MOQ)
|
Basic Info.
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE, SGS, TUV
Suitable for
Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Product Name

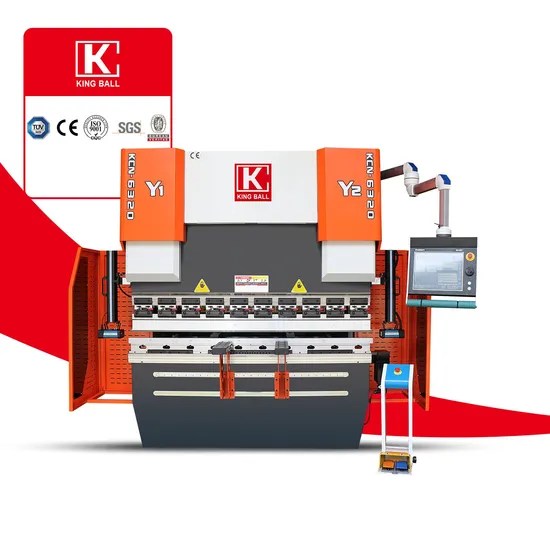

Electro Hydraulic Synchronous CNC Press Brake
Control System
CT8, CT12, Da53t, Da58t, Da66t
Main Motor
Siemens Germany
Usage
Metal Sheet Bending
Place of Origin
Jiangsu, China
Specification
4500x1750x2450mm
Production Capacity
200sets/Month
Packaging & Delivery
Package Size
480.00cm * 220.00cm * 240.00cm
Package Gross Weight
4000.000kg
Product Description
Screen
| 10.1" TFT Colour LCD display
| 15" TFT Colour LCD display
| 17" TFT Colour LCD display
| 17" TFT Colour LCD display
|
Resoluntion
| 1024 x 600 pixels, 32 bit colour
| 1024 x 768 pixels, 32 bit colour
| 1280 x 1024 pixels, 16 bit colour
| 1280 x 1024 pixels, 32 bit colour
|
Maximum axes
| Up to 4 +1 axes ()
| Up to 4 +1 axes
| Up to 8 +1 axes
| Up to 8 +1 axes
|
Program method
| numerical + 2D graphical (optional)
| numerical + 2D graphical
| numerical + 2D modular
| numerical + 3D modular
|
Touch sensor
| Full touch screen control (PCT-touch)
| Full touch screen control (PCT-touch)
| Full touch screen control (IR-touch)
| Full touch screen control (IR-touch)
|
Storage capacity
| 1 GB
| 1 GB
| 1 GB
| 2 GB
|
Product and tools memory
| 256MB
| 256MB
| 256MB
| 256MB
|
Networking
| /
| Optional
| Standard Windows® networking
| Standard Windows® networking
|
Bend sequence calculation
| /
| Standrad
| Standrad
| Standrad
|
Offline software
| Profile-53TL
| Profile-58TL
| Profile-TL
| Profile-T3D
|
Tandem capability
| Optional
| Optional
| Optional
| Optional
|
Language
| BR, CN, CZ, DK, NL EN , FI, FR,DE, GR, HU, IT JP , KR,LT, PL,PT, RO, RU, SI, ES, SE, TR
| BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU , IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR
| BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR
| BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR
|
Parameters of pure electric press brake
Full Servo CNC Press Brake | 3012 | 4016 | 6020 | 8025 | 10032 |
Capacity | kN | 300 | 400 | 600 | 800 | 1000 |
Max. Bending Length | mm | 1250 | 1600 | 2000 | 2500 | 3200 |
Between Columns | mm | 800 | 1200 | 1600 | 2100 | 2600 |
Max. Shut Height | mm | 480 | 480 | 480 | 480 | 480 |
Slide Stroke | mm | 200 | 200 | 200 | 200 | 200 |
Throat Depth | mm | 250 | 250 | 350 | 350 | 400 |
Down Speed | mm/min | 200 | 200 | 200 | 200 | 200 |
Pressing Speed | mm/min | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 |
Return Speed | mm/min | 200 | 200 | 200 | 200 | 200 |
Main Motor Power | kW | 18 | 7.5*2 | 18*2 | 28*2 | 41*2 |
X axis stroke | mm | 500 | 500 | 500 | 500 | 500 |
X axis speed | mm/s | 300 | 300 | 300 | 300 | 300 |
R axis stroke | mm | 200 | 200 | 200 | 200 | 200 |
R axis speed | mm/s | 60 | 60 | 60 | 60 | 60 |
Outline Size | L | mm | 1700 | 2500 | 2500 | 3000 | 4500 |
| W | mm | 1450 | 1750 | 1750 | 1750 | 1920 |
| H | mm | 2400 | 2500 | 2600 | 2600 | 2700 |
Weight | kg | 3000 | 4500 | 5500 | 7200 | 10500 |
Main Ball screw Unlike traditional electro-hydraulic servo press brakes, our advanced motor technology adjusts power consumption based on load, ensuring significant energy savings and enhanced economic benefits. Main motor
The servo motor, working through a synchronous toothed belt and ball screw transmission, ensures precise control of the machine beam's vertical movements. This technology delivers higher speed and precision, providing superior performance for your tasks.
Our ServicePre-sales services:1. Inquiry and consulting support
2. Sample testing support
3. Factory visits welcome
After-sales services:1. Two-year warranty period
2. Comprehensive training on installation and usage of the brake press machine
3. Availability of engineers for overseas machinery serviceContact Ways Ms. Linda ZhangCustomer Manager
