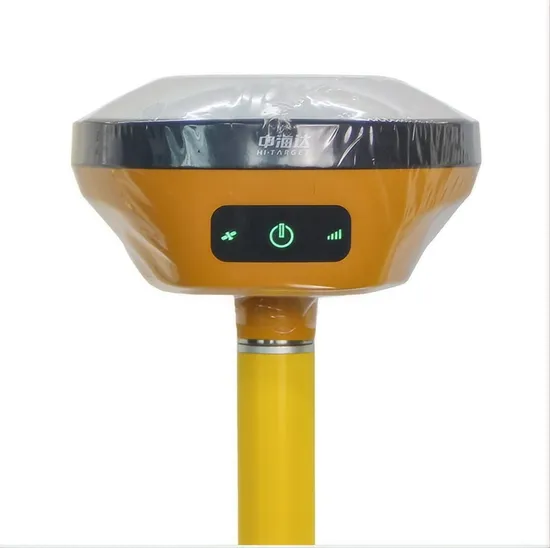

Hi Target V200 Base and Rover Gnss GPS Receiver Rtk

Hi Target V200 Base and Rover Gnss GPS Receiver Rtk

US$1,400.00
1-4 Pieces
US$1,200.00
5+ Pieces

Basic Info.

Model NO.
V200
Beidou
B1I, B2I, B3I, B1c, B2a
Software
English, Spanish, French, Russian, Multi-Language
Voice
English
Application
Land Surveying
Display
LCD
Transmitting Power
0.5W, 1W, 2W Adjustable
Internal Battery Life
Static 12hours
Transmitting Speed
9.6kbps, 19.2kbps
Accuracy
2mm
Vertical Lines
1
Horizontal Line
1
After-sales Service
Maintenance and Technical Training
Warranty
12months
Transport Package
Carton + Foam Packing
Specification
35.5*15.5*30cm 6kg
Trademark
hi-target
Origin
China
HS Code
8526919090
Production Capacity
1000/Year

Packaging & Delivery

Package Size
35.50cm * 15.50cm * 39.00cm
Package Gross Weight
6.000kg

Product Description

Product Description
*More Portability Equipped with an ultra-light EPP material instrument case of a high anti-strong impact, shock and impact resistance and a centering rod that can be contracted to 1.25 m, making it durable and portable in the fieldwork. *Greater Flexibility It can bring accurate and reliable results and boost efficient fieldwork with self-developed built-in IMU and core algorithm. *Higher Accuracy and Precision Equipped with the High-Performance Patch Antenna, enhances the low elevation angle tracking capabilities and keeps it maintaining a high gain for higher elevation satellites while tracking low-elevation satellites *More Stability Hi-Target Hi-Fix enables continuous connectivity and quality results even if you lose the signal while using the RTK base station or VRS network under extreme circumstances.
Key Features :
1. The new IMU can be measured by shaking it;
2. Built-in integrated battery;
3. Fast charging, can be fully charged in 1 hour;
4.Small size, easy to carry; Higher Accuracy and Precision Equipped with the High-Performance Patch Antenna,
enhances the low elevation angle tracking capabilities
and keeps it maintaining a high gain
for higher elevation satellites while tracking low-elevation satellites.
Product Parameters
V200 specification
Channels 800+
Satelite Tracked GPS:L1/ L2/ L5/L2C
BeiDou:B1/ B2/ B3/B1C/B2a
GLONASS: L1/L2/L3
Galileo:E1/ E5 AltBOC/E5a/E5b/E6
QZSS:L1/L2/L5/L6
SBAS: L1/ L5
IRNSS:L5
Static and Fast static Gnss Surveying
Horizontal ± (2.5+0.5× 10-6d) mm (D is the distance between measured points)
Vertical ± (5+0.5× 10-6d) mm (D is the distance between measured points)
Post Processing Kinematic (PPK / Stop & Go ) GNSS Surveying
Horizontal 8mm+1ppm RMS
Vertical 15mm+1ppm RMS
Initialization time Typically 10 min for base while 5 min for rover
Initialization reliability typically > 99.9%
High-precision static GNSS Surveying
Horizontal ±(8+1×10¯6D)mm (D is the distance between measured points)
Vertical :±(15+1×10¯6D)mm D is the distance between the measured points
Code Differential GNSS Positionnig
Horizontal ±0.25m + 1 ppm RMS
Vertical ±0.25m + 1 ppm RMS
SBAS
Positioning accuracy 0.50m Horizontal, 0.85m Vertical
Real Time Kinematic (RTK)
Single Base Horizonta:8mm+1ppm RMS
Vertica:15mm+1ppm RMS
Network RTK Horizonta:8mm+0.5ppm RMS
Vertical:15mm+0.5ppm RMS
Initialization time:Typically <10s
Initialization reliability:Typically > 99.9%
Communication
Internal UHF Radio Frequency: 410-470MHz
Channels:116 (16 adjustable)
Transmitting power:0.5W,1W,2W
agreement:Hi-Target, Trimtalk450S, trimmarkIII, Transeot, SATEL-3AS,South,CHC,ect
Working Range:3-5km typical, 8-10km optimal
HI-TARGET External UHF Radio(Standard) Frequency: 403-473MHz
Transmitting speed:Up to 19.2Kbps
Channels:116 (16 adjustable)
5W,10W,20W,30W adjustable
Working Range:8~10km typical,15~20km optimal
IMU(Tilt Survey) Built-in high-precision inertial navigation, automatic attitude compensation, no correction, anti-magnetic interference, instant measurement at the point of arrival;
Network Communication
Full band support for cellular mobile network(LTE, WCDMA, EDGE, GPRS, GSM) 2.4GHz WIFI, supports 802.11b/g/n. Network RTK (in CORS) range is 20-50km
Physical
Dimensions(W×H) 132mm*67mm
Weight ≤0.83kg (includes battery)
Shock and vibration Designed to survive a 2m(9.84ft) natural fall onto concrete
Water/Dustproof IP67
Humidity 100% condensing
Operation temperature -30ºC~+70ºC
Storage temperature -40ºC~+80ºC
Bluetooth 2.1+4.0
NFC NFC flash even
A serial port RS232 serial port
Control Panel Physical button
Energy consumption and working hours
Electrical Power 6V to 28V DC external power input
Power consumption≤4.2W
Built-in high-capacity lithium battery 6800mAh/7.4V, support USB PD3.0 super fast charging, charging time <3.5h
Internal Battery Life Static more than 10 hours
RTK rover (UHF/GPRS/3G)6-10 hours
RTK base more than 10 hours
Data Formats
1Hz positioninng Output, up to 50Hz. CMR, RTCM2.X, RTCM3.0, RTCM3.1, RTCM3.2. Navigation outputs ASCII NMEA-0183, GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA,ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS, Binary: Trimble GSOF, NMEA2000
Company Profile
Packing & Delivery
Packaging DetailsHitarget V200 base and rover Packaging Details:2 cartons Size: base +rover station: 40cm*40cm*40cm; 12KG 20cm*20cm*140cm; 6KG Lead Time : 5 working days after payment confirmed PortShnaghia Port/shenzhen port Example: Lead Time
Quantity(Pieces) 5 6-20 >50
Lead Time 5 8 To be negotiated
About payment Generally, we accept Online payment, Trade Assurance, Irrevocable LC at sight, Advance T/T, Escrow and West union.If you prefer other payment terms, please let us know.
Packaging & Shipping
About the company Nanjing Haoce Surveying Instrument Co.Ltd. We began survey instrument business since 2010. As the agent of CHC and South and Hi-Target in JiangSu province for survey instruments, we can give you the rock-bottom price and best service. We supply you with Gnss RTK, auto level, theodolite, total station, 3D scanner, rotary laser, tripod, prism, prism pole, prism group and so on. At the basis of Foif total station, we can accept OEM. Our warranty policy is as followed. For instruments(total station, GNSS, auto level), we offer one year warranty, for accessories(prism, pole, tripod, leveling staff), we offer six months warranty from the day you get the products. For product within the warranty period, please send us photos to show the problem. And then we will decide to send you parts or you send the instrument back to us to repair. Please make sure to contact us first instead of sending the damaged parts direct to us. For problem out of the warranty period or warranty lialility, we will judge the problem and quote for you.

Our Services 1.Any inquiries will be replied within 12 hours.2.All our products have 3 year warranty, And we sure the products will be free from maintenance within warranty period.3.All products will have been strictly quality checked in factory before sending out.4.we can providing instrument technology training.
