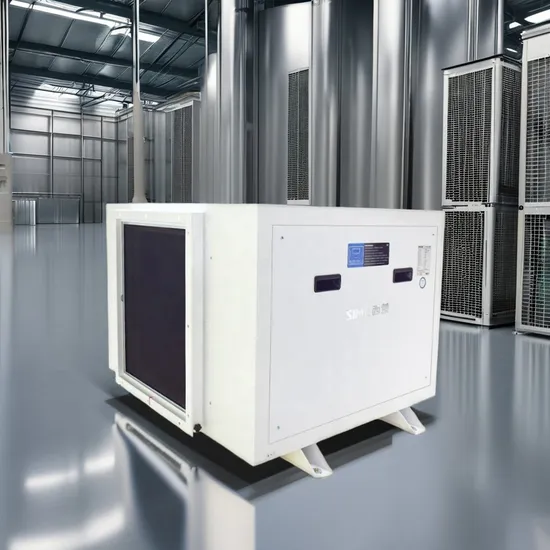

Efficient 360L Ceiling-Mounted Draina System for Dehumidifier Replacement Parts Included

Product Description

Product Parameters

Model	XCD-168	XCD-S240	XCD-S360	XCD-S480
Power Supply (V/Hz)	220/50	380/50
Power (KW)	2.8	4	7.5	8.5
Dehumidification Capacity (L/D) at 30ºC RH80%	168	240	360	480
Airflow Volume (m³/h)	1800	2580	4300	5800
External Static Pressure (Pa)	120	140		160
Filtering device	Primary filtration
Adjustable Humidity Range (RH):	10-95%
Applicable Temperature (ºC)	5-35
Applicable Area () with a ceiling height of 2.6m	200-250	300-350	450-550	550-750
Refrigerant	R22
Drainage Method	Straight water pipe
Compressor	Internationally renowned brand compressors
Control Method	Intelligent automatic control
Air return port (mm)	470*550	640*550	1100*550
Air outlet (mm)	640*380		1100*380
Noise Level (dB(A))	60	60	75	77
Machine Dimensions (Length * Width * Height mm)	1080*965*710		1440*1110*710
Weight (Kg)	88	112	230	238

Product Description

After-sales Service Provided:	Free spare parts
Warranty:	1 Year
Application:	Villa, office, garage, wine cellar, production workshop, basement, greenhouse
Power Source:	Electric
App-ControlledAPP:	No
Type:	Refrigerative Dehumidifier
Function:	High strength fuselage; High air volume; Super configuration; Strong dehumidification; Intelligent control;
Capacity (L /D):	360L
Coverage Area (square meters):	450-550
Dimensions (L x W x H (mm):	1440*1110*710
Power (W):	7500
Voltage (V):	380/50
drainage method:	Direct drainage of pipe
Working Temperature Range():	5~35
Place of Origin:	Zhejiang, China
Brand Name:	SIMN
Dehumidifying Technology:	COMPRESSOR
Model Number:	XCD-S360
Moisture Removal Capacity:	360L/day (30°C RH80%);
Noise level(dB(A):	75
Refrigerant:	Custom
Net weight(kg):	230
Color:	White
Supply Ability	15000 Blade/Blades per Month
Packaging & delivery
Packaging Details	Standard export packing
Port	Ningbo/Shanghai

FAQ
Q:Are you a manufacturer or a trading company?
A:We are a manufacturer with over 13 year experience.
Q: What's the warranty period?
A: One year from the shipping date.
Q:Do you provide free samples ?
A:For the first cooperation, we need to charge the sample and freight cost. And ship out in 3-5 working days after test. Sample cost will be returned once you place bulk order.
Q:Do you accept small quantity for trial order?
A:We accept small quantity for trial order to support your business. But please be advised that it could be difficult to be arranged on our peak season.
Q:What is the lead time ?
A:Sample: 3-5 working days after payment.Bulk order: 15-45 working days, please confirm case by case.
Q:What is your payment term for bulk orders ?
A:We can accept 30% T/T in advance, balance against the copy of B/L Or L/C at sight.
Q:How do you ship the goods?
A:DHL, UPS, FedEx, TNT, Airline, Train,and sea shipping also optional. You can also send your shipping agent to pick up the goods.
Q:Do you accept private label on product ?
A: Acceptable for bulk order at least 500-1000 pcs. If less, confirm case by case.
Q: Do you accept color box packing when quantity is below MOQ ?
A: Most of our items are with free white gift box. We can make color box, but the cost of the printing plate fee will be included in unit price.
