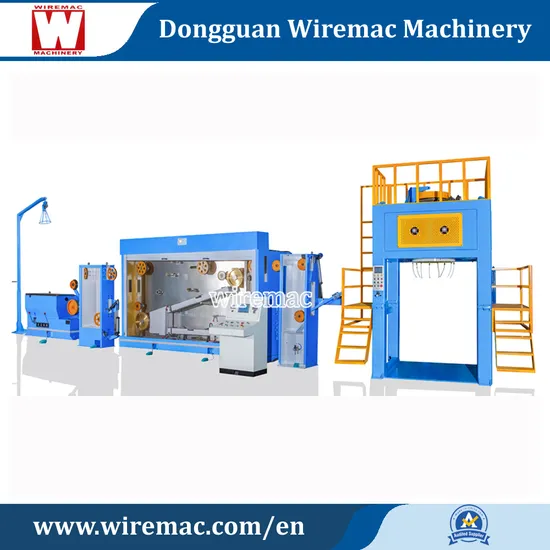

Stainless Steel Material Full Automatic Big Copper Wire Drawing Machine Aluminum Copper Rod Breakdown Machine with Online Annealer

Product Description

Stainless Steel Material Full Automatic Big Copper Wire Drawing Machine Aluminum Copper Rod Breakdown Machine With Online Annealer Product Description
Introduction
The production line is highly integrated by uncoiling, leveling, forming, cutting off, punching, receiving and related process.The whole production line is controlled by PCL program.Operators can select a preset program to run the whole line automatically by using touch screen.The methods of operation include automatic control, manual control, separate operation and emergency stop.
Features
1. The drawing wheel used level arrangement, wire drawing oil immersion type --- Simple Operation
2. The rim surface of wheel spurts welds the tungsten carbide --- Durable
3. Advanced CNC system --- Efficient
4. Gear transmission --- Low noise, very smooth
Product Parameters
Technical Parameters

Machine type	DLT450/13D-5000A		DL400/9D			DLT400/11D
Max inlet diameter	8 mm		8 mm			8 mm
Outlet diameter range	1.2 - 3.0 mm		2.6 - 3.0 mm			1.6 - 3.5 mm
Max die number	13		9			11
Max line speed	1200 m/min		600 m/min			1200 m/min
Main motor power	280 kw		132 kw			160 kw
Capstan motor power	55 kw		/			45 kw
Gear & bearing lubrication method	The oil pump forces to give the oil.
Elongation	1st - 12th: 20-40%, 13th: 10-30%		1st - 8th: 31.7%, 9th: 13-30%			1st - 10th: 31.7%, 11th: 10-30%
Annealing wheel diameter	450 mm		400 mm			400 mm
Annealing wheel number	4 pcs		/			4 pcs
Max annealing current	5000 A		/			4000 A
Max annealing voltage	60 V		/			60 V
Annealing capacity	400 KVA		/			400 KVA
Total installed power	780 KVA		130 KVA			650 KVA
Power supply	380V, 50HZ		380V, 50HZ			380V, 50HZ
Machine dimension	L20000 x W5000 x H4000 mm		L12000 x W4500 x H4000 mm			L16000 x W5000 x H4000 mm
Brake method	Air disk type		Air disk type			Air disk type
Dies changing method	Fast type		/			Fast type

Detailed Photos

Company Profile
WIREMAC MACHINERY EQPT. CO., LTD. is located in Humen,Dongguan, a famous historic town in China.It is wire and cable equipment manufacturer integreating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing industry research, production of a variety of high-speed micro-drawing machine.Small drawing machine, small drawing continuous annealing machine, medium and small drawing machine, medium and small continuous annealing machine, medium drawing continuous annealing machine, large drawing machine, large drawing continuous annealing machine, wire drawing machine, annealing tin plating machine and other products.
The company upholds the spirit of "honesty-base, quality-based" enterprise, we will continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the "high-quality and efficient" business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory Marketing and service.
Our Service
CONSULTING SERVICE
A team of experienced engineers are ready to advise you personally.
Your benefits at a glance: Problems can be solved quickly over the phone and internet in direct contact with the correct employee for the issue at hand.
SPARE PARTS SERVICE
The strengths of our skilled employees include expert advice, offering spare parts specific to your requirements and short delivery times.
Your benefits at a glance: Increased processing times for your machines thanks to the prompt delivery of spare parts.You receive original parts that are specially optimized for your machines.
MAINTENANCE SERVICE
HMP carries out regular maintenance as part of its service agreements.
Your benefits at a glance: Expert maintenance of your machines is key to increasing machine availability and product quality.
INSPECTION SERVICE
We carry out preventive maintenance on your machines.
Your benefits at a glance: Potential faults are recognized at an early stage, giving us time to carry out preventive maintenance work.This helps avoid unscheduled downtime and costs.
TRAINING SERVICE
We can organize individual training courses for you at your factory or at our premises.
Your benefits at a glance: Well-trained staff ensure increased machine utilization and improved product quality. Employees get to meet their contact partners at HMP personally.
AFTER SALES SERVICE
1) 24 hours service on Internet and Telephone, free instructions and problem solving
2) Free training to make sure a master of the operating of line for the person who come to our factory
3) User-friendly English manual or operating video for machine using and maintaining
4) On-the-spot training, installation and repairing can be meet if required.
(If so, the buyer should afford the visa and air ticket and allowance 100USD/DAY Salary)
Our Advantages
1. All the electrical elements, Circuit breaker protection and AC contactors are schneider or other world famous brand.
2. International CE standard high flexibility, high shielding cables.
3. Warranty time:1 year
4. Quotation Valid: 90 days
5. Payment terms: 30% as deposit, 70% balance made before shipment
6. Delivery time: 30 days upon receipt of 30% deposit by T/T
Location:
1.Only 35 minutes from Guangzhou city to Dongguan city by high speed train.
2.Just 40 minutes from Shenzhen city to Dongguan city by high speed train.
3.Total 1.5 hours by car from Guangzhou airport to our factory .
4.Only 1 hour by car from Shenzhen airport to our factory.
FAQ
1. Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2. Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3. Q: What is the MOQ?
A: One set
4. Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6. Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO 9001.Every machine has to past testing running before it's packed for shipment.
7. Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
9. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you to solve the material(steel coil)purchase, worker train, international market price.
10. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
