CE Approved Standard Auto Car Lift 2 Post Car Lift
| US$1,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SY-232B
Type
Double Cylinder Hydraulic Lift
Lifting Capacity
3T
Driving Type
Hydraulic
Certification
CE
Driving Motor Number of Mechanical Lift
1
Double Cylinder Lift Type
Planer-type
Shearing Lift Type
Small Shear Type
Condition
New
Brand
Shinely
Design
Two Post
Color
as Require
Voltage
as Require
Transport Package
Polyfoam and Carton
Specification
CE ISO9001: 2000
Trademark
BZB
Origin
Guangzhou, China
HS Code
84198990
Production Capacity
500sets/Year
Product Description

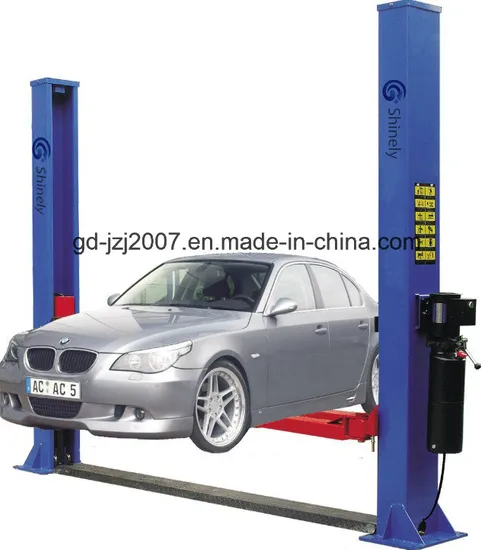

SY-232B two post hydraulic liftFeatures:
Driven by double hydraulic cylinders, chain-type elevating system
The stabilization system of steel wire rope, it ascends and descends smoothly
Multi-voltage power supply is available for convenient use
Two sides manual safety lock release system
Asymmetric design, make the auto door can be opened with narrow width between pillars
Economical but reliable cast-iron cover motor, Optional aluminum motor
Optional imported pumping device
Technical data
| Lifting capacity | 7714lbs/3500kg |
| Lifting height | 71"/1800mm |
| Lifting time | 50seconds |
| Overall height | 111"/2816mm |
| Overall width | 138"/3500mm |
| Width between columns | 110"/2800mm |
| Motor voltage | 220V or 380V |
| Frequency | 50Hz or 60Hz |
| Phase | 1ph or 3ph |
| Net weight | 1417lbs/643kg |
