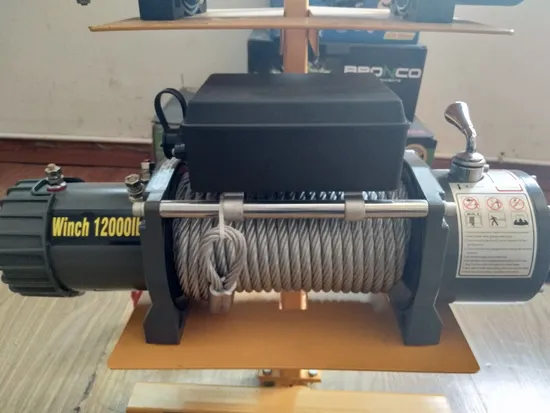

Recovery Truck Winch 12000lbs Wireless 12VDC CE Approved
Basic Info.
Model NO.
CM12000
Pull Direction
Forward
Electric Winch Model
4X4 Winch
Working Voltage of Electric Winch
Low Voltage
Brand
Safe Winch
Applicable Environment
Swamp
Certification
CE, MD
Color: Silver or Black
Wireles Remote Control: as Per Your Request
Wire Rope
Handle Switch Included
Transport Package
White Foam and Export Carton
Specification
CE, MD, etc
Trademark
CHIMA, OEM
Origin
Ningbo China
HS Code
3352960157
Production Capacity
1200PCS Per Day
Product Description
Winch model: 4 WD winch CM12000Performance: Single line rated pull 12000lb
Motor: 6.0HP/4.5kw, Series Wound
Control: Remote switch, 12ft(3.7m)lead
Gear train: 3 Stage Planetary
Gear reduction ratio 265.2: 1
Sincerely welcome businessmen overseas to establish a long-term cooperation to create a beautiful tomorrow!
| CM10000-I | |
| Performance | 12VDC |
| Single line rated pull | 12000lb |
| Motor | 6.0hp/4.5kw,Series Wound |
| Control | Remote switch,12ft(3.7m)lead |
| Gear train | 3 Stage Planetary |
| Gear reduction ratio | 265.2:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Drum size | |
| Cable | ( 24.4m of 9.5mm diameter) |
| Fairlead | 4-Way Roller Fairlead |
| Remote Control | Included |
| Battery | Recommended:650CCA minimum for winching |
| BatteryLeads | 2 gauge,72"(1.83m) |
| Weight | N.W.84lbs(42kg) G.W. 94lbs(46.5kg) |
| Electric winch with series wound motor | |||||
| Model | Capcity | Power | Steel cable | Size (L X W X H) | NW |
| CM12000 | 12000LB | DC12V | ΓΈ 9.5mm X 24.4m | 530 X 160 X 212mm | 42KG |
| Line Pull And Rope Capacity In Layer | ||
| Layer | Rated Line Pull (lbs./kgs) | Tatal Rope On Drum (ft/m ) |
| 1 | 12000 (5455) | 19.6 (6.0) |
| 2 | 9530 (4332) | 42.6 (13.0) |
| 3 | 7920 (3600) | 72.0 (22) |
| 4 | 6770 (3077) | 85.3(26) |
