Low Price Small Dry Pet Dog Pellet Food Extruder Fish Feed Making Machine

Low Price Small Dry Pet Dog Pellet Food Extruder Fish Feed Making Machine

US$38,500.00
1-19 Pieces
US$18,500.00
20+ Pieces

Basic Info.

Model NO.
HM-95
Processing Technics
Extrusion
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Sifter
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Powder
Warranty
1 Year
Motor Brand
Siemens
Inverter Brand
Delta
Bearings Brand
SKF
Barrel
Alloy
Material of Screw
38CrMoAl
Material of Machine
Stainless Steel
Capacity
600-800kgs/H
Voltage
220V/380V
After Sale Service
One Year Free Service
Material of Products
Fish Meal, Corn Flour,Rice Flour,etc
Certificates
CE/SGS
Transport Package
Wooden Package
Specification
35000*1500*3500mm
Trademark
Himax
Origin
Jinan, China
HS Code
8438800000
Production Capacity
100sets/Year

Packaging & Delivery

Package Size
3500.00cm * 150.00cm * 350.00cm
Package Gross Weight
3500.000kg

Product Description

Samples

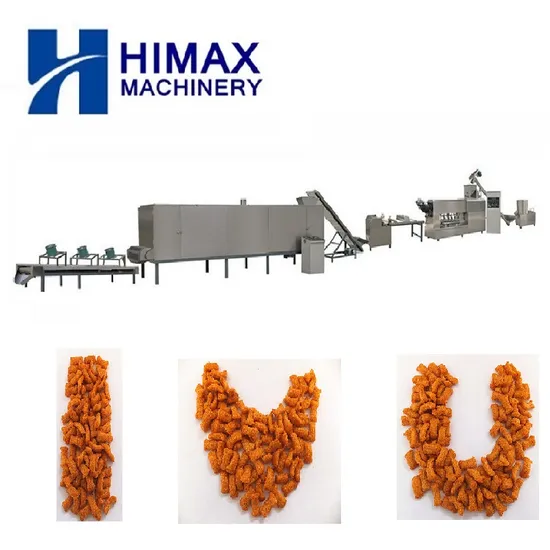

Full automatic big large capacity pet food production line
1. Production Description Pet food making machine or animal material intended for consumption by dogs or other canines.The pet food is close to the human beings food in the fine level,the heath index and the nutritional ingredients,some of them request more highly than human beings.
2. Technical Parameter
Model Installed Power(kw) Power Consumption(kw) Capacity(kg/h) Dimension(m)
65 processing line 74 52 120-180 17*1.2*2.2
70 processing line 95 70 200-300 20*1.5*2.2
75 processing line 110 82 250-400 26*1.5*2.2
85 processing line 139 104 400-800 28*3.5*4.3
90 processing line 132 75 800-1200 28*3.5*4.3
95 processing line 165 90 1500-2000 35*3.5*4.3
120 processing line 469 380 2000-2500 45*20*22
135 processing line 712 570 3000-3500 50*20*25

3. Raw materials Fish meal, corn flour, rice flour, soya flour, bone meal, meat, animal oil etc.
4. Different shapes are made by adjusting the dies from extruder 1.0mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,4.5mm...10.0mm depend on fish food dies size
5.Voltage in China
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries. 6. Flow chart
Mixer--- Air conveyor--- Twin-screw extruder ---Hoister --- Dryer ---Flavoring line---Cooler
Our engineer could design the layout drawing according to your dimension of the factory for the fish feed machines.
8. Why choose us
9. Packing and delivery
10. Our Company
