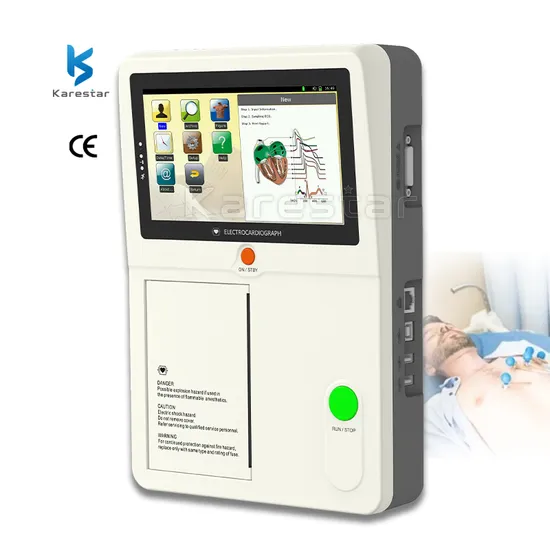

Hot Sale K-Eb63 Touch Screen Medical Electrocardiogram 12 Leads 6 Channel Digital

Product Description

Product Description Hot Sale K-EB63 Touch Screen Medical Electrocardiogram 12 Leads 6 Channel Digital portable ekg Quick Details: 1. Simultaneously acquisition of 12 leads, full screen display of 6 channel ECG waveform. 2. 7'' color touch screen. 3. Built-in rechargeable li-ion battery 4. Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic. 5. Historical data and patient's information can be reviewed and printed. 6. Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software. 7. Sleep mode to save energy and extend TFT screen life . 8.Lead off & lack off paper detection function. 9.Portable design with hidden handle, convenient to carry. 10.Adapt to 110-230V, 50/ 60Hz AC power supply.

Standard Configuration			Option Configuration:
Main machine	1 PC	Thermal Paper
Patient cable	1 PC	Trolley
Limb electrode	1set (4pcs)	PC (Computer) accessories
Chest electrode	1set( 6pcs)
Power cable	1 PC
112mm*20m ECG recording paper	1 PC
Paper axis	1 PC
Power cord	1 PC

Touch Mode Quick Input Convenient Setting Unlimited Storage Specification

CMRR	≥ 100dB, with AC Filter	Calibrating voltage	1mV± 3%
Input circuit	Floating,Protection against defibrillator effect	Voltage tolerance	± 500mV
Input circuit current	≤ 0.1µ A	Time constant	> 3.2s
Resolution	12bit/1000Hz	Frequent response	0.05Hz~150Hz
Operation mode	Manual/Auto	Noise level	≤ 15µ Vp-p
Filter	AC. EMG Filter	Threshold	≤ 20µ V
Drift filter	Anti-Drift System	Paper speed	12.5, 25, 50mm/s (± 3%)
Input Impedance	> 50MΩ	Sensitivity	51020mm/mV
Patient current leakage	< 10µ A	Recorder	High resolution thermal printer
Rated voltage	1 00V-230V 50Hz/60Hz	Battery	Built-in rechargeable Li-ion battery 11.1V(2200mAh)
Recording paper	Thermal recording paper	Package	295mm*205mm*73mm

Recommend Products Other Information FAQ Q1: Are you trading company or manufacturer? A: We are factory which has over 7 years' manufacturing experience. Q2: Why we find some prices are very high compared with some other suppliers, and from the picture or it's model number, all looks the same? A: As China is still a developing country, there are only a few products with patent rights, but the copy products spread very fast on the market. Of course, the prices of those copy products is cheaper due to low material, craft and quality control. Anyway, price, quality and service is tightly related. Q3: What's the MOQ? A: The MOQ is 1 Set, and samples can be sent for your evaluation. Q4: How can get the shipping cost? Please tell us your destination or delivery address, we will check the best Sea Freight or Air Freight for you based on your requirements. Q5: How long is your delivery time? A: Usually 3-30 days after order confirmed. Based on the item and quantity. Q6: Can you do OEM/Private logo/label? A: Yes, we can do OEM/private logo/label for you. We also have complete facilities and R&D team ready for your service. Q7: What is your terms of payment? A: We accept T/T, trade assurance order, L/C, Western union, Paypal and more. Please suggest your preferred payment method. Q8: Do you test all your goods before delivery? A: Yes, we have 100% test before delivery. Q9: How to deal with the faulty? A: First, our products are produced under in strict quality control system, but if any faulty, we will send new spare partrs for free within warranty year. Secondly, our after-sales department will periodically follow up customers.
