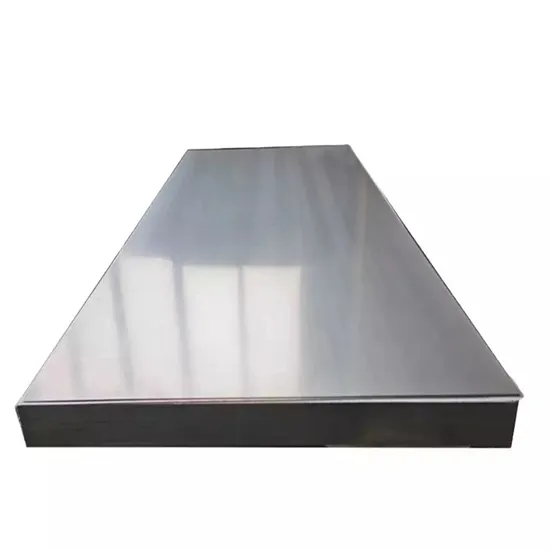

Lork AMS 7725e/ASTM B777-15 W-Ni-Fe Alloy Sheet for Nuclear Reactor Components Wm0125 Tungsten Nickel Iron Alloy Plate

Product Description

Product Description

Introduction Lork Group specializes in the supply of Grade ASTM F1537 Alloy 1 raw materials and processing, alloys, stainless steel, metal quality development, welcome your inquiries
Tungsten Nickel Iron Alloy, also known as high-density tungsten alloy, combines the exceptional properties of tungsten, nickel, and iron. With a high density approaching that of pure tungsten, this alloy offers excellent mechanical strength, thermal stability, and corrosion resistance. It finds extensive applications in aerospace, defense, and medical industries, where high-density materials are required for balancing, shielding, and radiation protection purposes. Tungsten Nickel Iron Alloy exhibits outstanding machinability, allowing for precise shaping and fabrication of intricate components. Its versatility and reliability make it a preferred choice for demanding engineering and design challenges where density and durability are paramount.
Tungsten Nickel Iron Alloy (W-Ni-Fe Alloy) Application
1. Aerospace: Used in aerospace components such as balance weights, vibration dampers, and counterweights for aircraft and spacecraft due to their high density and mechanical strength.
2. Defense: Employed in armor-piercing projectiles, kinetic energy penetrators, and radiation shielding materials for military vehicles and equipment due to its density and ability to withstand high-impact forces.
3. Medical: Utilized in medical devices such as collimators, radiation shields, and gamma-ray collimators for radiation therapy and diagnostic imaging applications due to their ability to attenuate radiation.
4. Nuclear Industry: Found in nuclear shielding, reactor components, and radiation containment systems due to its high density and resistance to radiation damage.
5. Precision Instrumentation: Used in precision instruments such as gyroscopes, inertial navigation systems, and precision balance scales for their density and stability in critical applications.
6. Automotive: Employed in automotive applications such as crankshaft counterweights, balancing weights, and ballasts for race cars and high-performance vehicles due to its ability to optimize weight distribution and reduce vibrations.
7. Sports Equipment: Found in sports equipment such as golf club heads, fishing weights, and bicycle components for its ability to provide precise weight distribution and improve performance.
Standard Inventory Specifications - MIL-T-21014
- SAE-AMS-T-21014
- ASTM B777-87 Specifications of Tungsten Nickel Iron Alloy (W-Ni-Fe Alloy)

ASTM B777-15	Non-magnetic Class 1	Non-magnetic Class 2	Non-magnetic Class 3	Magnetic Class 1	Magnetic Class 2	Magnetic Class 3	Magnetic Class 4
AMS 7725E	Type 1 Class 1	Type 1 Class 2	Type 1 Class 3	Type 2 Class 1	Type 2 Class 2	Type 2 Class 3	Type 2 Class 4
MIL-T-21014 Rev D	Class 1	Class 2	Class 3	Class 1	Class 2	Class 3	Class 4
SAE-AMS-T-21014	Class 1	Class 2	Class 3	Class 1	Class 2	Class 3	Class 4
Tungsten (wt%)	90	93	95	90	92.5	95	97
Binder	Ni/Cu	Ni/Cu	Ni/Cu	Ni/Fe	Ni/Fe	Ni/Fe	Ni/Fe
g/cm3	17.10	17.60	17.90	17.10	17.50	18.10	18.50
lb/in3	0.62	0.64	0.65	0.62	0.63	0.65	0.67
Hardness, HRC	24	24	24	27	24	24	25
Mpa	675	650	680	645	645	660	660
ksi	100	95	100	95	95	95	95
Mpa	805	830	805	875	900	910	915
ksi	116	120	116	126	130	131	132

Available Sizes And Specifications

WM0125 available sizes and specifications
Grade	WM0125
Nickel plate	Thickness: 0.3mm - 150.0mm Width: 1000mm - 3000mm
Nickel strip/ nickel foil	Thickness: 0.02mm - 16.0mm Width: 5mm - 3000mm
Nickel coil	Thickness: 0.3mm - 16.0mm Width: 1000mm - 3000mm
Nickel pipe	Outside diameter: 6mm - 1219mm Thickness: 0.5mm - 100mm
Nickel Capillary Pipe	Outside diameter: 0.5mm - 6.0mm Thickness: 0.05mm - 2.0mm
Nickel bar	Diameter: Ф4mm - Ф600mm
Nickel wire rod	Diameter:Ф0.01mm - Ф6mm

Detection

Processing
Packaging & Shipping

Company Profile

FAQ
Q1: Do you accept the trial order ?
A1: Yes,if we have the exactly size in stock.we can delivery even 1 piece/meter .
Q2: Can I have free sample before making orders?
A2: Yes,we can supply free sample as requirement,but buyer needs to pay the freight charges ,the freight fee will return to buyer after making order.
Q3: How do you control the quality ?
A3: MTC and PMI will be sent before shipment,any 3rd party inspection if need .
Q4: How about your delivery time ?
A4: Generally delivery time is 15 working days .
Q5: How can I quickly get the price list ?
A5: Directly click "chat now" or send us email with detail specifications,you will get the official price list in 1 hour .
