Metal Round Bar Belt Polishing Machine

Product Description

Equipment use
The planetary belt polishing machine is mainly used for surface polishing of disc steel and small bar material. The surface of the wire after polishing with planetary sand belt; No oxidation and rust, the surface is smooth and clean, can meet the technical requirements of subsequent processing.
Function introduction

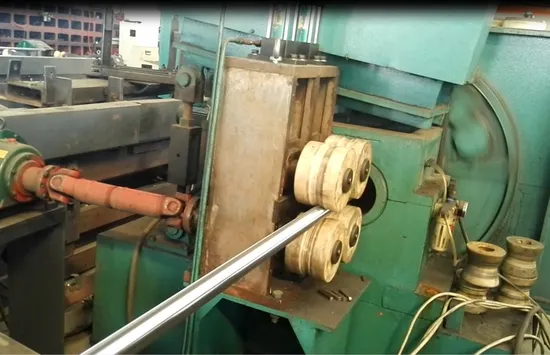

The machine is complete with feeding rack, feeding roller, clamping device, main engine, extraction device, feeding roller and feeding rack. The main shaft of the main machine is a hollow mechanism, and one piece of sand belt disc is installed at both ends,and two sets of spring seat mechanisms are installed on the symmetric two pieces of sand belt disc, and the spring seat is arranged symmetrically. Each piece of sand belt disc is installed on the driving belt wheel, tension belt wheel and pressure belt wheel. A sand belt is installed on the belt wheel. A fixed gear is installed on the frame, and a planetary gear is installed on the turntable. The turntable mechanism rotates under the drive of the main motor, and the planetary gear meshes with the fixed gear to drive the sand belt to rotate at a high speed while rotating. Driven by the clamping and pulling device and the roller device of the auxiliary machine, the processed material moves axially through the abrasive belt grinding spindle to achieve the purpose of grinding the outer diameter of the round steel on average. The control system adopts button operation. The TENSION OF two groups of high-speed rotating sand belt is adjusted by two spring holders and adjusting screws to meet the requirements of different machining material diameters and achieve the purpose of different feed and grinding pressure requirements. The revolution and rotation of the equipment are controlled by the frequency converter.
The machine can realize automatic loading and unloading. With wet dust removal equipment, dust removal effect is good, can prevent flying dust combustion, and improve processing efficiency. More suitable for titanium and other materials processing.
YM20 sand belt polishing machine can be used with other equipment online polishing, do not have to equip with various materials rack and other facilities. Can also be used alone, need to be equipped with automatic loading and unloading rack. According to customer needs, make specific choices. The manual with reduced configuration will not be prepared separately. Please refer to the relevant section of this book for use.
The machine has strong practicability, convenient adjustment and maintenance; High working efficiency, stable processing process, good processing quality.

Technical Parameters
(I) Raw material dimensions:
Diameter range: φ0.3-φ2mm
Diameter deviation: ≤±0.05mm
Straightness: ≤2‰
(2) Finished products
Grinding capacity: 0.005-0.01mm (different number of sand belt, different grinding capacity)
Surface roughness Ra:≤ 1.6um-2.5um-3.2um-6.3um (determined by the number of sand mesh)
(3) Specifications
The width of sand belt is 60mm
Sand belt mesh number 60#-120#
The height of the main engine working center is 1045mm
The overall dimensions of the main engine are 1643mm long, 1350mm wide and 1500mm high
(4) Technical parameters
Linear speed of sand belt: 20M/S
Speed of sand belt disc: 630R /min(power frequency)
Wire feed speed: ≤ 20m/min
Spindle motor power: 15kW 2 pole (frequency conversion) 1
Dust removal machine: 3KW
Installed capacity: 18KW
Company introduction Yantai Haige International Trading Co.,Ltd., is a joint-stock enterprise engaged in exporting niche mechanical equipments produced in China to the markets abroad, which is located in Laishan district, Yantai City, Shandong Province, China.
The company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd whose area is more than 2000m².There are one hundred and forty staffs working in the factory.The factory is mainly engaged in producing and selling peeling machines(centerless lathes), straightening machines, polishing machines(abrasive belt machines), auxiliary machines and other processing and finishing equipment for steel(bright steel) for more than ten years.
Certification
Packaging & Shipping
FAQ 1.Are you manufacturer or trading company?
We are professional manufacturer and we have more than 10 years experience in this field.We have our own factory.
Besides,at the end of 2014,we was just estabilished a trading company.
2.How many employees are there in your factory?
Approximately 150 persons.
3.Do you have your own R&D team?How many design engineers do you have?
Yes,we have our own R&D team.More than 10 persons.
4.Which countries have your machines been exported to now?
Russia,South Korea,North KOrea,Pakistan,India,Vietnam,Taiwan,etc.
We regard our customer's satisfaction as our unremitting pursuit.
