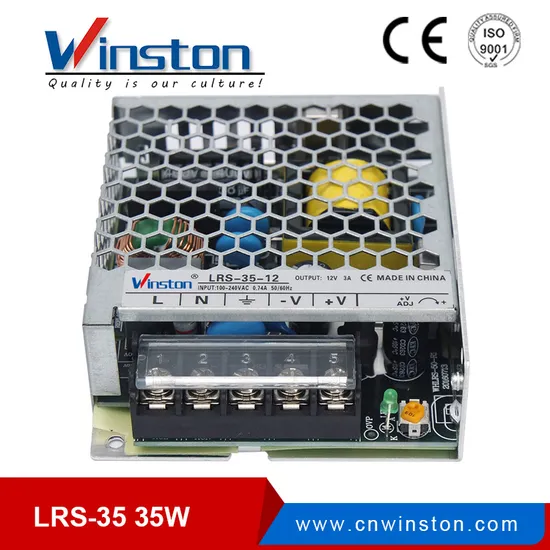

35W SMPS Single Output AC 220V to DC 5V 12V 24V 36V 48V DC LED Switching Power Supply with CE, RoHS (LRS-35)
| US$6.03-7.48 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LRS-35-5,LRS-35-12,LRS-35-15,LRS-35-24,LRS-35-36
Output Power
1 - 50W
Input Voltage
Full Range
Connection Mode
Series Switching Power Supply
Starting Mode
Self-excited Switching Power Supply
Voltage Regulating Mode
Frequency Modulation Type
Power Supplying System
Terminal Power Distribution Equipment
Energy Transmission
One-way Transmission
Modulation System
PWM
Certification
CE, RoHS, CCC
Brand
Winston
Antistop
Switching Power Supply
Workmanship
The Exquisite German Technology
Manufacturer
Yes
Dimensions
99*82*30mm
Weight
0.3kg
Transport Package
Export Standard Carton Box or ODM
Specification
CE, ROHS
Trademark
Winston/OEM/Neutral
Origin
China, Zhejiang, Wenzhou
HS Code
8504401990
Production Capacity
10000PCS/Month
Packaging & Delivery
Package Size
12.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.400kg
Product Description
LRS-35-5V 12V 15V 24V 36V 48V New type 35W single output switching power supply with CE
1.INPUT:85-264VAC 120-373VDC
2.CE RoHS Approval
3.Size:99*82*30mm (L*W*H)
4.3 Year Warranty
| MODEL | LRS-35-5 | LRS-35-12 | LRS-35-15 | LRS-35-24 | LRS-35-36 | LRS-35-48 | |
| OUTPUT | DC Voltage | 5V | 12V | 15V | 24V | 36V | 48V |
| Rated Current | 7A | 3A | 2.4A | 1.5A | 1A | 0.8A | |
| Current Range | 0~7A | 0~3A | 0~2.4A | 0~1.5A | 0~1A | 0~0.8A | |
| Rated Power | 35W | 36W | 36W | 36W | 36W | 38.4W | |
| Ripple &Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | |
| Voltange ADJ. Range | 4.5~ 5.5V | 10.2~ 13.8V | 13.5~ 18V | 21.6~ 28.8V | 32.4- 39.6V | 43.2~ 52.8V | |
| Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Setup, Rise Time | 1000ms, 30ms/230VAC 2000ms,30ms/115VAC at full load | ||||||
| Hold Up Time | 30ms/230VAC 12ms/115VAC at full load | ||||||
| INPUT | Voltage Range | 85 ~ 264VAC 120 ~ 373VDC | |||||
| Frequency Range | 47 ~ 63Hz | ||||||
| Efficiency | 82% | 86% | 86% | 88% | 88% | 89% | |
| AC Current | 0.7A/115VAC 0.42A/230VAC | ||||||
| Inrush Current | COLD START 45A/230VAC | ||||||
| Leakage Current | <0.75mA/ 240VAC | ||||||
| PROTECTION | Over Load | 110 ~ 150% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| Over Voltage | 5.75~ 6.9V | 13.8~ 16.2V | 18.75~ 21.75V | 28.8~ 33.6V | 41.4~ 48.6V | 55.2~ 64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| ENVIRONMENT | Working Temp. | -20 ~ +70ºC (Refer to "Derating Curve") | |||||
| Working Humidity | 20 ~ 90% RH non-condensing | ||||||
| Storage Temp.,Humidity | 40 ~ +85 , 10 ~ 95% RH | ||||||
| Temp.Coefficien | ±0.03%/ºC (0~50ºC) | ||||||
| Vibration | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | Safety Standards | EN60950-1, EN60335-1, EN61558-1 2 16 approved | |||||
| Withstand voltage | I/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | ||||||
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH | ||||||
| OTHERS | MTBF | 763.6K hrs min. MIL-HDBK-217F (25ºC) | |||||
| Dimension | 99*82*30mm (L*W*H) | ||||||
| Packing | 0.3kg | ||||||
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
