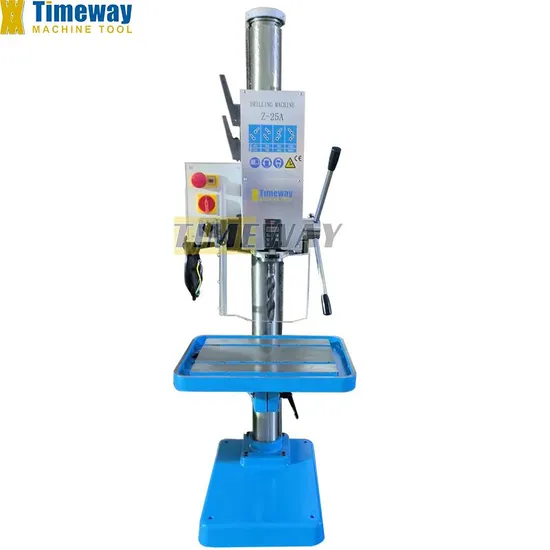

Best Selling Small Gear Head Borehole Drilling Machine CE Certificate (Z-25A)
| US$1,000.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z-25A
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Max. Drilling Capacity
25mm
Gross Weight
257kg
Max. Travel of Spindle
135mm
Max. Tapping Capacity
M16
Transport Package
Plywood Case
Specification
580x730x1820mm
Trademark
TIMEWAY
Origin
China
HS Code
84592900
Production Capacity
500 Sets/1 Year
Product Description
Best Selling Small Gear Head Borehole Drilling Machine Z-25AVertical drilling machine is a drilling machine whose main shaft is arranged vertically and the center position is fixed, referred to as vertical drilling.
It is often used in machinery manufacturing and repair factories to process holes for medium and small workpieces,can realize vertical and horizontal milling two processing functions.
Features
Built-in motor, fast speed up to 2900 rpm; Low noise, main engine engages with bamboo gears, suitable for drilling small-bore workpieces; High precision, compact design appearance, with protective power-off function, safe and reliable.
Specification
| Model | Z-25A |
| Max. drilling capacity | 25mm |
| Max. travel of spindle | 135mm |
| Max. tapping capacity | M16 |
| Spindle bore taper | MT3 |
| Max.distance from spindle nose to working surface | 940mm |
| Max.distance from spindle nose to base surface | 1250mm |
| Max. adjustment of worktable and table rest | 460mm |
| Effective working area of table(L×W) | 500×360mm |
| Effective working area of base plate(L×W) | 490×400mm |
| Motor power(50HZ) | 0.65kw/0.9kw |
| Motor power(60HZ) | 0.8kw/1.1kw |
| Spindle feed range | 0.1-0.15-0.33mm/rev |
| Net/Gross weight | 210kg/257kg |
| Packing size | 580×730×1820mm |
