CE EPA China Small Hydraulic Excavators Mini Excavator 1ton 2 Ton 3ton 6ton Cheap Price for Mini Excavator

Product Description

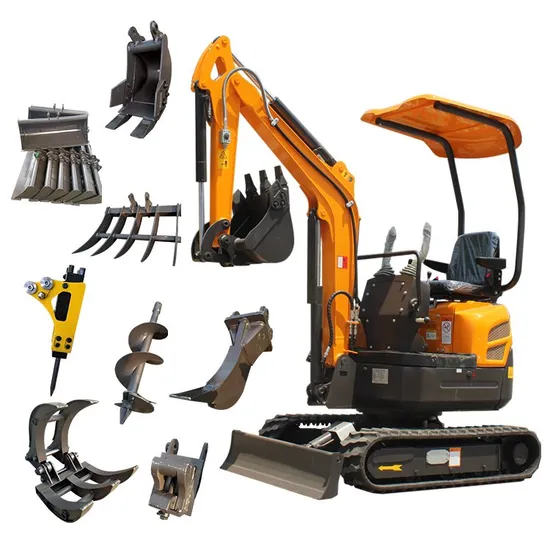

Earth moving machinery 1ton 0.8ton micro mini excavator with free bucket for sale
CE EPA China small Hydraulic excavators mini excavator 1ton 2 ton 3ton 6ton cheap price for mini excavator
The complete machine is small and exquisite in size and turning radius, mainly suitable for landscaping, urban construction, pipeline laying and other working conditions
It featuring low noise, light and small turning radius and excellent economical efficiency. The complete machine boasts outstanding inching performance and small impact by virtue of the perfect matching of the engine and the hydraulic components. Its cab uses oil shock absorption with a new suspension seat provided, provide a comfortable working environment for operator .
The hydraulic main valve and key hydraulic pipelines and daily maintenance points are arranged in the full-open front and rear hoods, which can further facilitate daily maintenance.
The complete machine is configured with standard high-power water-conditioning system, standby power, magazine bags and storage boxes, etc. in accordance with a humanized design. The optional rubber tracks, steel tracks, quartering hammers, quick changers and other auxiliary equipment have significantly improved its capacity for dealing with all kinds of working conditions.
WE HAVE 0.8TON TO 3.5TON EXCAVATOR FOR YOUR CHOICE //

Popular Excavator type List

Model	JXW-08	JXW-10	JXW-13	JXW-15
Vehicle weight	800kg	1000kg	1300kg	1500kg
Bucket capacity	0.02m3	0.025m3	0.02m3	0.025m3
Bucket width	30cm	40cm	38cm	40cm
Engine	ChangChai192F /KOOPKD192F-1	ChangChai192F /KOOPKD192F-1	ChangChai EV80 /CF13	LL380/Yanmar 3TNV70
Power	8.6 Kw/ 2200 rpm	8.6 Kw/ 2200 rpm	14Kw/ 2200 rpm	13.4Kw/ 2200 rpm
Rotary speed	12rpm	12rpm	12rpm	12rpm
Walking speed	2km/h	2km/h	2km/h	2km/h
Grade ability	30°	30°	30°	30°
Crawler width	15cm	18cm	18cm	18cm
Crawler length	1140mm	1200mm	1090mm	1250mm
Max. Digging Radius	2400mm	2400mm	2400mm	2450mm
Max. Digging Depth	1200mm	1200mm	1400mm	1320mm
Max. Digging Height	2400mm	2400mm	2490mm	2400mm
Max unloading height	1750mm	1750mm	1750mm	1800mm

Model	JXW-16	JXW-17	JXW-18	JXW-18k
Vehicle weight	1600kg	1700kg	2000kg	1900-2000kg
Bucket capacity	0.025m3	0.025m3	0.15m3	0.1m3
Bucket width	40cm	40cm	45cm	48cm
Engine	LL380/Yanmar 3TNV70	LL380/Yanmar 3TNV70	LL380	LL380/Yanmar3TE25
Power	13.4 Kw/ 2200 rpm	13.4 Kw/ 2200 rpm	22.1Kw/ 2350 rpm	18.4Kw/ 2350 rpm
Rotary speed	12rpm	12rpm	10rpm	12rpm
Walking speed	2km/h	2km/h	2.8km/h	2km/h
Grade ability	30°	30°	30°	30°
Crawler width	20cm	23cm	28cm	23cm
Crawler length	1250mm	1300mm	1880mm	1850mm
Max. Digging Radius	2550mm	2600mm	3850mm	3600mm
Max. Digging Depth	1500mm	1600mm	2200mm	2000mm
Max. Digging Height	2450mm	2450mm	3300mm	3720mm
Max unloading height	1900mm	1950mm	2400mm	2000mm

Model	JXW-20	JXW-25	JXW-26	JXW-35
Vehicle weight	1900-2000kg	2500kg	2300kg	3500-3600kg
Bucket capacity	0.1m3	0.08m3	0.1m3	0.26m3
Bucket width	48cm	50cm	48cm	60cm
Engine	LL380/3TE25	ChangChai390/Yanmar 3TNV76	LL380/3TE30	ZN490/C490/Yanmar
Power	18.4 Kw/ 2350 rpm	18.1 Kw/ 2350 rpm	22.1Kw/ 2350 rpm	36.8Kw/ 2200 rpm
Rotary speed	12rpm	12rpm	12rpm	9-11rpm
Walking speed	2km/h	2km/h	2.7km/h	2.7/4.6km/h
Grade ability	30°	30°	30°	30°
Crawler width	23cm	23cm	23cm	30cm
Crawler length	1850mm	1620mm	1850mm	2175mm
Max. Digging Radius	3600mm	2730mm	3690mm	4730mm
Max. Digging Depth	2000mm	1600mm	2630mm	2545mm
Max. Digging Height	3720mm	3300mm	3820mm	4450mm
Max unloading height	2000mm	1950mm	2320mm	3050mm
