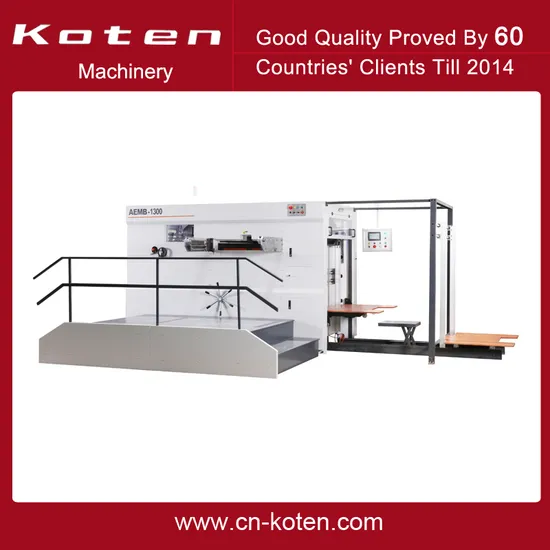

Semiautomatic Cardboard Die Cutting Creasing Machine
| US$50,000.00-90,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
AEM-1080B/1300B/1500B
Placing Form of Template
Horizontal
Die Cutting Tool
Metal Mold
Computerized
Computerized
Automatic Grade
Semi-Automatic
Application
Paper Packaging Materials
Feeder
by Hand
Speed
About 4000PCS/H
Size
1500X1100mm
PLC Touch Screen Control
Yes
Transport Package
Strong Export Wooden Case.
Specification
Export or CE Certificate
Trademark
Koten
Origin
China
Production Capacity
50set/Month
Product Description
Video Checking.https://youtu.be/lVDX04fkHpU
Die Cutting Plate and Finished Sample.
AUTOMATIC DIE CUTTING MACHINE
Automatic diecutting and creasing machine is mainly used for the diecutting, creasing, cold and hot embossing of cigarette box, drug box, wine box and label in the packing and decorating industries.
This kind of machine is incorporated with fully automatic feeding, diecutting, delivering counting, obstacle indicating, checking and measuring. It has the features of easy operating, reliablity, high speed and precision.
Main Specifications.
| Model | AEM-1080 B | AEM-1300B | AEM-1500B |
| Max. paper size | 1080x780MM | 1320x980MM | 1500x1100MM |
| Max. cutting size | 1075x770MM | 1300x950MM | 1470x1070MM |
| Die cutting precision | ± 0.3MM | ± 0.3MM | ± 0.3MM |
| Max. feeding pile | 1000MM | 1400MM | 1500MM |
| Thickness of paper | Corrugated paper ≤ 8MM | Corrugated paper ≤ 8MM | Corrugated paper ≤ 8MM |
| Total power | 13.5KW | 16.5KW | 16.5KW |
| Min. paper size | 550x480MM | 550x480MM | 550x480MM |
| Max. cutting speed | 4000S/H(Cardboard) | 4000S/H(Cardboard) | 4000S/H(Cardboard) |
| Pressure | 250T | 250T | 250T |
| Max. delivery pile | 1000MM | 1200MM | 1250MM |
| Net weight | 12T | 14T | 16T |
| Overall dimension | 3800x2000x2000MM | 4300x2250x2250MM | 4300x2300x2500MM |
Koten Machines Loaded Into Container At the Ningbo Port.
Koten Brand Machines In The Clients' Factory. Factory Production.
