Advanced Planetary Mixer for Superior Mixing Efficiency and Precision

Product Description

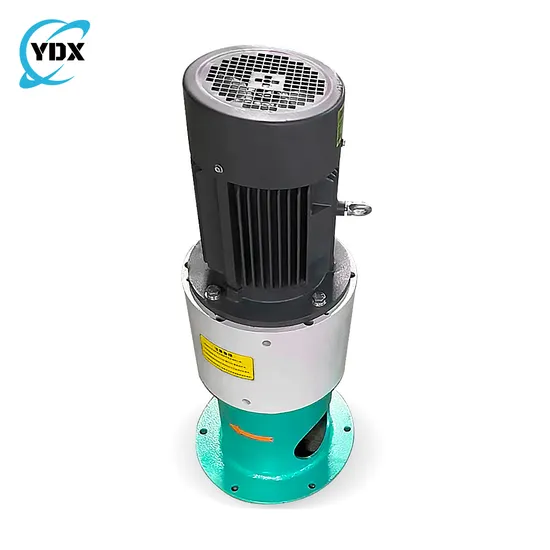

[ High-Efficiency Planetary Stirrer ]The YDX high-efficiency planetary stirrer is an advanced mixing solution designed for optimal performance in blending and homogenizing various materials. This innovative equipment is ideal for industries that demand precise and uniform mixing, ensuring high-quality and consistent results. Below is a detailed introduction to its features and functionalities:
Features:High-Efficiency Performance:
Versatile Handling: Capable of mixing a wide range of materials, from low to high viscosity, ensuring rapid and thorough blending.
Reduced Mixing Time: The efficient design significantly cuts down on mixing time, boosting productivity and throughput.
Adjustable Speed Control:
Variable Speed Settings: Features adjustable speed controls, allowing operators to fine-tune the mixing speed according to specific process requirements.
Precision Mixing: The ability to control speed precisely ensures that the mixing process can be tailored to different materials and desired outcomes.
Efficient Mixing Blades:
Interchangeable Blades: Equipped with versatile, interchangeable blades designed for various mixing tasks, optimizing mixing efficiency for different applications.
Easy Maintenance: The blades are easy to remove and clean, minimizing downtime and ensuring continuous operation.
User-Friendly Interface:
Intuitive Controls: The control panel is designed for ease of use, providing operators with real-time monitoring and adjustment capabilities.
Safety Features: Includes essential safety mechanisms such as emergency stop functions and safety interlocks to protect both the operator and the equipment.

Model	Motor power	Tank dia	Output speed	Tank depth	Weight
YDX-150	0.75-2.2KW	1-2m	22-50m/min	3m	250kg
YDX-250	2.2-4KW	3-6m	8-15m/min	4m	300kg
YDX-350	3-5.5KW	6-8m	5-8m/min	6m	460kg
YDX-450	4-7.5KW	8-10m	4-7m/min	8m	600kg
YDX-750	5.5-11KW	10-11m	3-6m/min	10m	900kg
YDX-1000	7.5-15KW	12-14m	3-6m/min	12m	1100kg

[ Features ]The structure of planetary secondary transmission makes the equipment more efficient and energy-saving in operation and output.The belt pulley transmission can adjust the speed and protect the gear from the influence of starting.Robust Design. The Gear is made of 20crMnTi and 38GrMoli, which are heat-treated, carburized and nitrided by scientific means, so as to be firm and wear-resistant.
. The built-in double bearing sepraration design of the drive shaft prevents the gear and motor service life from being affected during stirring work.
. The all-planetary secondary transmission structure design makes the equipment more efficient and energy-saving during operation and output.Planetary Mixing Action
Dual Motion: The stirrer utilizes a unique planetary mixing action, where the mixing blades rotate on their axis while simultaneously revolving around the mixing vessel.Thorough Mixing: This dual motion ensures that all materials are evenly mixed, reaching every part of the mixing vessel for uniform consistency.
[ Product Details ]
[ Applications ]Ceramic Industry: Perfect for mixing ceramic slurries and glazes, ensuring a consistent and uniform mix.Chemical Industry: Ideal for blending chemicals, pigments, and other high-viscosity materials, providing thorough and efficient mixing.Food and Beverage Industry: Ensures homogeneous mixing of food-grade ingredients, maintaining high hygiene and quality standards.Pharmaceutical Industry: Delivers precise mixing for pharmaceutical formulations, ensuring consistency and compliance with industry standards.Paint and Coatings Industry: Suitable for mixing paints and coatings, ensuring uniform color and texture.Slurry in ceramic, mineral and chemical industry such as ceramic slurry, glaze, clay or kaolin etc.
Foshan Yidaxin Technology Co., Ltd.is a professional manufacturer of ceramic machinery and equipment, boasting a history of 20 years. The company specializes in producing a new generation of fully automatic iron removal machines designed for slurry, glaze, and powder, as well as high-efficiency planetary mixers, vibrating screens, roller-type micropowder crushers, rollerscreens, and belt scales. These products have been exported to countries such as India, Vietnam, Thailand, Turkey, Bangladesh, and Indonesia, as well as other regions in Southeast Asia.
Yidaxin is equipped with high-precision mechanical processing capabilities and a team of experienced engineers and technical personnel. This ensures the provision of high-quality products and exceptional after-sales service. Their commitment to excellence has garnered high praise from customers, leadi ng to a strong reputation and an excellent brand image in the ceramic industry.
The company's business philosophy, "providing a stage, nurturing talents, being down-to-earth, making good ceramic machinery,reflects their dedication to creating a learning oriented organization and building a cohesive team. With professionalism comes trust, and Yidaxin is confident in facing challenges and continuing to innovate in the ceramic machinery sector.Q: Do you provide design services?
A: Yes, we offer OEM/ODM service, Our custom services ensure that your equipment integrates seamlessly into your production line. Contact us to learn more about our design solutions.Q: What is the iron removing rate of your Magnetic Separators?
A: ABOVE 99%.
Q: What is the MOQ of your machine?
A: Our MOQ is 1 set.
Q: How long does production take?
A: Most orders are processed within 15-20 days, We also offer rush order services for urgent requirements.
Q: Where are your machines produced?
A: All our ceramic machinery are produced in our own factory in Foshan, ChinaQ: How do you package your ceramic machinery?A: We package all our machinery using export-standard wooden cases.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: What is the usual payment method?
A: T/T,L/C, Paypal, VISA, e-Checking,Western Union etc.
