Animal Tmr Feed Crusher Mixer Professional Sheep Cattle Cow Dairy Farm Tmr Feed Mixer

Product Description

Animal TMR Feed Crusher Mixer Professional Sheep Cattle Cow Dairy Farm TMR Feed Mixer Features of Vertical TMR Feed Mixer Dairy Farm TMR Feed Mixer,also know as the whole mixed diet feed mixer,TMR feed preparation machine,TMR feed mixer,TMR mixer,is a set of crushing, mixing in one of the
feed processing equipment.It is suitable for feed farming in farming and animal husbandry breeding areas,large and medium-sized farms and
standard communities.It can be used for chopping and mixing of all kinds of forage grasses,crop stalks and silage feedstuffs and mixing them with fine feedstuffs.

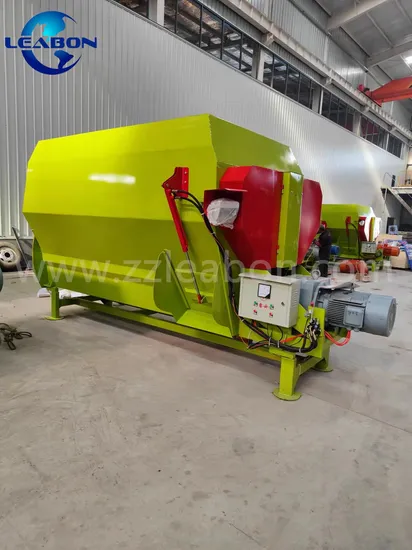

According to the design structure points,a fixed feed mixer and self-propelled feed mixer. Horizontal information of TMR

Model	9TMRW3	9TMRW-5	9TMRW-9	9TMRW-12
Motor Power(kw)	11	15	22	30
Capacity(kg/h)	1000-1500kgs/h	2000-3000kgs/h	4000-5000kgs/h	6000-7000kgs/h
QTY of blades(PCS)	33	40	58	69
QTY of twisted dragon(PCS)	3	3	3	3
Bottom plate thickness	5mm	6mm	8mm	10mm
Side plate thickness	4mm	5mm	6mm	6mm
Reducer	Jiangsu JZQ400	Jiangsu Guomao R137	Jiangsu Guomao R147	Jiangsu Guomao R149
Dimension(mm)	3600*1700*1900	3900*1800*2100	4600*2000*2500	5300*2200*2600
Weight(kg)	1700	2300	3200	4100

Vertical information of TMR

Model	LBL-5	LBL-9	LBL-12	LBL-16
Productivity (t/h)	2-3	4-5	6-7	8-10
Power (kw)	15	22	30	22+22
Mixing Shaft	1pc major mixing shaft	1pc major mixing shaft	1pc major mixing shaft	2pc major mixing shaft
Blade Type	Large serrated knife
QTY of Blade (pcs)	5	8	8	16
Weighing System	4 sensors, 1 display
Bottom Plate Thickness (mm)	14	16	16	18
Side Plate Thickness (mm)	5	8	8	8
Dimension (m)	3.1*1.9*2.1	3.9*2.3*2.5	4.6*2.4*2.6	5.8*2.5*2.6
Weight (kg)	1900	2800	3600	5000

Belt Conveyor Tricycle Mixer Spreader
Show more pictures of the feeder mixer

Model	LB-5
Productivity (t/h)	2-3
Power (kw)	35HP
Blade Type	Large serrated knife
QTY of Blade (pcs)	5
Thickness of bottom plate	14mm
Side plate thickness	5mm
Weight	3300kg
Size	4500*1900*2400mm

Details of Feed Mixer
Raw material and finally product of feed mixer
The raw material could be used for chopping and mixing of all kinds of forage grasses, crop stalks and silage feedstuffs and mixing them with fine feedstuffs.
We have Vertical and Horizontal feed mixer can be choose
Feed mixer working shop
