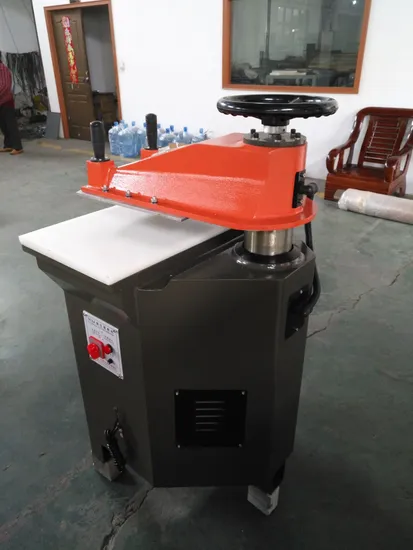

Dp-506-12t 12ton Hydraulic Swing Arm Cutting Machine

Product Description

DP-506-12T 12Ton Hydraulic swing arm cutting machine The machine is applicable to cutting of various nonmetal materials by die cutter. The use of time control allows for simple and convenient setting of cutter depth. Operation with both hands,safe and reliable. The inertial energy of flying wheel is used so that the energy consumption is low and the operation stable. 5, The whole machine users self-lubricating system to reduce wear and extend the service life of the machine.

Model	DP-506-12T (GSB-2C )
Cutting Force	12Tons
Sway Arm Width	350X450mm
Stroke Adjustment	5-65mm
Cutting speed	0.1m/s
Table Area	400X800mm
Motor Power	0.75kw 380v/1.1kw 220v
Voltage	3*380v/50hz
Packing Size(LXWXH)	900X900X1400mm

(A) Hydraulic swing arm cutting machine is mainly used for industrial use of knife mold cutting soft plastic sheet, leather, fiber, cotton textiles, cardboard or other similar materials.
(B) characteristics
1, cutting force mainly 100KN, 120KN, 160KN, 200KN, 250KN. Can meet the different production requirements of customers.
2, with automatic oil lubrication system to reduce wear and prolong the service life.
3, the use of electronic delay circuit control stroke lower limit position, high precision, can improve product quality, the use of hand wheel to adjust the swing arm from the table height, simple, reliable and convenient.
4, column, swing arm, piston rods are selected high-quality steel, durable.
5, the use of flywheel inertia can be instantaneous cut, less energy consumption.
Hydraulic principle
When the motor starts, the pump produces oil from the A, B port back to the oil pool and a part of the oil into the body, the column sliding bearing surface, to maintain good lubrication when running. When the suction of the solenoid valve was forced to pull, the spool movement, the left working oil into the cylinder through the pipeline. So that the cylinder down, swing arm with cutter die material, when the control mechanism to make the iron off power loss, the spool reset, the column under the action of the spring reset.
