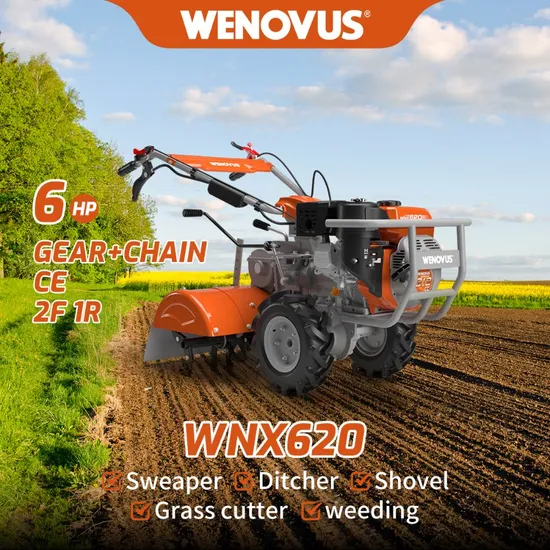

Wenovus Wnx620 Tiller 2 Front 1 Reverse Gear and Chain+Gear Driving Max Power 4.3kw
| US$410.00-460.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
WNX620
Application Field
Agriculture
Farming Policy
Paddy Field and Dry Field
Power Source
Gasoline
Operation
Arable Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Orange
Warranty
1 Year
Tilling Scope(mm)
620
Tilling Depth(mm)
Above 100
Gear
2 Front, 1 Reverse
Gearbox Oil Capacity(L)
2.2
Driving Mode
Gear+Chain
Engine Model
Wn170f/P-2
Max Power(Kw)
4.3
Fuel Tank Capacity(L)
3.6
Engine Oil Capacity(L)
0.6
Accessories
Walking Iron Wheels, Rotary Blades 350-6 Wheels
Packing Dimension(mm)
1280*740*720
Net Weight(Kg)
100
Loading Quantity/40hq(Set)
81
Certificate
CE
Optional Accessories
400-8 Wheels
Transport Package
Container
Specification
1280*740*720
Trademark
WENOVUS
Origin
Chongqing China
HS Code
84322900
Production Capacity
10000PCS/Year
Product Description
Company ProductsOur Advantages
1.Highest levels of vertical integration in the industry
ΦSuperior quality control
ΦStable, responsive supply chain
2.China and Thailand based manufacturing operations and supply chain
ΦAvoids anti-dumping tariffs (country of origin certified as Thailand for select categories)
ΦExcellent Thailand / U.S. government relationship
ΦStable Thailand supply chain and strong industrial base
3.Significant experience in contract manufacturing for well known brands
ΦStrength in maintaining costs low and ability to offer high quality competitively priced finished products to
ΦSupport channel partner brands
4.Wide range of gas and battery outdoor power equipment product categories
ΦMore than 10 categories in production, and adding more
ΦConfigurable products to customize solutions for retail and OEM customers
Product Description
Light weight,easy to operate, easy to transit.
With dual direction blade design, suitable for soft and hard soils. Clockwise rotation blades for soft soil, anti-clockwise rotation blades for hard soil. Fast and slow walking gears are available for rough tillage and intensive tillage.
With Optional weeding wheels for weeding application.
Direct gear clutch transmission: more reliable and durable.
Easy adjustable and operational handle: handle frame up/down, left/right can be adjustable with one lever.
Independent control of tilling and walking: blades' working can be stopped when transiting to other fields.
Blades rotate in dual directions on one shaft, providing a comfortable and stable tilling.
Detailed Photos
Product Parameters
| MODEL NAME | WNX620 |
| Tilling Scope(mm) | 620 |
| Tilling Depth(mm) | Above 100 |
| Gear Shifting | -1 0 1 2 |
| Driving Mode | Gear+Chain |
| Gearbox Oil Capacity(L) | Walking Gearbox: 1.2 Tilling Gearbox:0.6 |
| Engine Model | WN170F/P-2 |
| Max Power(kw) | 4.3 |
| Fuel Tank Capacity(L) | 3.6 |
| Engine Oil Capacity(L) | 0.6 |
| Accessaries | Walking Iron Wheels, Rotary Blades 350-6 Wheels |
| Packing Dimension(mm) | 1280*740*720 |
| Net Weight(kg) | 100 |
| Loading Quantity/40HQ(set) | 81 |
| Certificate | CE |
| Optional Accessaries | 400-8 Wheels |
