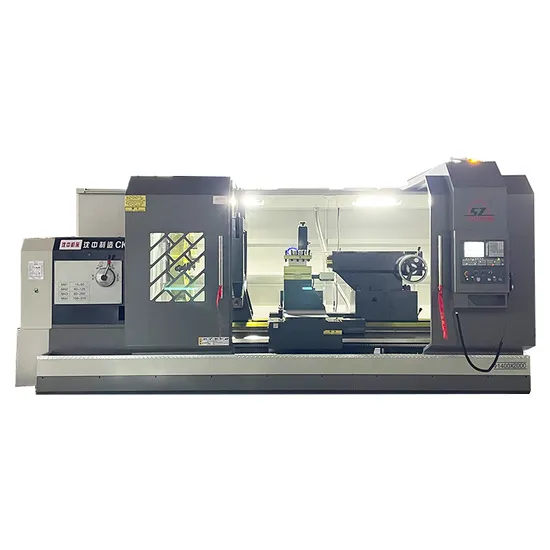

High Precision CNC Lathe Fully Automatic Horizontal British Standard Lathe Ck61140 CNC Lathe Machine

Product Description

Product Description
CK61140, guide rail track 755mm, the maximum rotary diameter of the bed 1400mm; the maximum rotary diameter of the tool holder 1000mm, the longest workpiece can be processed 2m, frequency control manual shift a total of 4 gears. The maximum weight of the lathe is 6T. Mainly used in large heavy and long workpieces, mostly used in shafts and disks.
CNC machine tool is an automated machine tool equipped with a programmed control system. The control system can logically process the program with the control code or other symbolic instructions, and decode it, expressed in coded numbers, through the information carrier into the numerical control device. After the calculation and processing by the CNC device to send out a variety of control signals to control the action of the machine tool, according to the drawing requirements of the shape and size of the parts automatically processed out.
CNC machine tools better solve the complex, precise, small batch, multi-species parts processing problems, is a flexible, high-performance automated machine tools, is a typical mechatronics products.
Product Parameters

Model	CK61140
Max rotary diameter of the bed	1400MM
Max rotary diameter on the tool holder	1000MM
Max length of workpiece	2000MM
Spindle through-hole diameter and head type	A2-15.130
CNC system	Guangzhou CNC 980TDi
X servo motor	Guangzhou CNC 22 Nm
Z servo motor	Guangzhou CNC 22 Nm (backlash-free reducer)
Drives	GR2000
Number of spindle speed stages	Manual shift 4-speed (variable frequency)
Spindle speed range	1gear 15-50; 2gear 40-125; 3gear 80-200 ;4gear; 150-315 stepless speed regulation
Protective cover	Full protection
Frequency inverter	30-37KW
Main motor	30KW
Electric tool holder	300 square
X-axis fast moving speed	4m/Min
Z-axis fast moving speed	4m/Min
X axis stroke	720MM
Z axis stroke	2000MM
X-direction lead screw	40mm
Z-direction lead screw	80mm
Mechanical parts warranty period	1year
System Warranty	3year
Cooling pump motor power	370W
Max load capacity	6T
Machine tools with chucks	1250 Four Claws

CNC machines are characterized by the following
1.Strong adaptability to the processing object, adapting to the characteristics of single-piece production of products such as molds and other molds, providing a suitable processing method for the manufacture of molds;
2.High processing precision, with stable processing quality;
3.can carry out the linkage of multi-coordinate, can process parts with complex shapes;
4. processing parts change, generally only need to change the CNC program, can save production preparation time;
5.the machine itself, high precision, rigidity, can choose favorable machining dosage, high productivity (generally 3-5 times the ordinary machine tools);
6.the high degree of automation of machine tools, can reduce labor intensity;
7.conducive to the modernization of production management. CNC machine tools use digital information and standard code processing, transfer of information, the use of computer control methods, computer-aided design, manufacturing and management of the integration laid the foundation;
8.the quality of the operator requires a higher quality, the technical requirements of maintenance personnel;
9.high reliability. Detailed Photos
