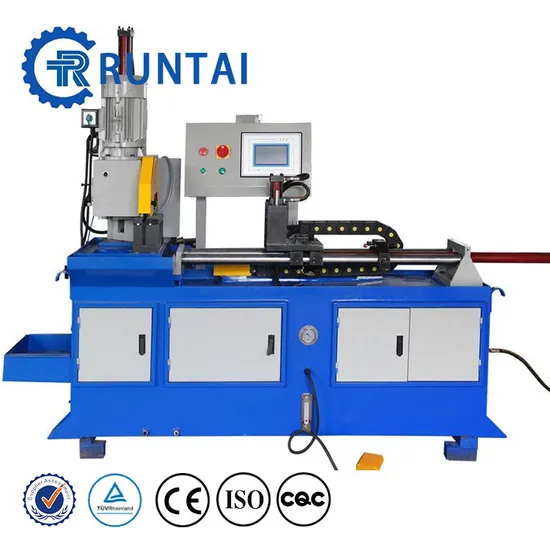

Rt - 425CNC Square Profile Stainless Steel Automatic Hydraulic CNC Pipe Cutting Machine

Product Description

RT-425CNC is fully automatic pipe cutting machine with PLC control system, servo for cutting, Touch screen panel display English and the Language you required, have different cutting leght, dialogue operation, can choose manual , semi-automatic and full automatic operation manual, portable pedal switch with start and emergency stop function.

Main features:
1. The vertical slide into the type, stable feed the knives' service life long
2. Special design, multiple sets of gear drive is suitable for heavy cutting, precision stability
3. The machine structure of strong, small vibration, machine long life
4. Coolant automatic cycle, ensure the workpiece edge smoothing.

Serial No.	Name		Parameters
1	Host motor		2/4 3/2.4kw
2	Spindle speed		96/48
3.	Apply saw blade	Outer Diameter	Φ300-375mm
		Center hole	Φ32mm
		Pin hole	2XΦ11X65mmPCD
6	Feed length		850mmX
7	oil pump system		2.2kw,4 motor,Double oil pump,Working Pressure25-35kg/c
8	cooling system		0.09kwmotor,Automatic cooling cycle
9	Machine weight		1000KG
10	Machine Size		2600x1200x1850mm

Main SpecificationsParameters:

Cutting ability (mild steel)
Main Specifications/Model	RT-425CNC		Remarks
blade size	Φ375mm×2mm		The CNC pipe cutting machine is automatic feeding,clamping and cutting.
type	Round pipe	Φ100
	square	70x70mm
	rectangle	90x100mm
	bar	Φ65
	Square bar	45mm

Company Details
Professional: 10 years into machinery.
Brand: RUNTAI, China Famous Brand
Engineers: 9 professional and experienced engineers
Certificates: CE, ISO9001:2008
Letters patents: 12 official patents
Examining report: 5 official examining reports
Innovation project: 2 innovative program awards
Exported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc

Trade information:
FOB Shanghai, CIF your port
Payment Terms: T/T, L/C
Delivery Terms: 30% deposit, 70% paid before shipment.
Delivery Time: 30days after receiving deposit
Minimum Order Quantity: 1 set
Warranty: 1 year
Package Details: wooden box
Supply Ability: 30 Sets per Month
Free Sample: No

Contact:
Contact person: Jackie He


Notes:
If you have any doubts about this machine, please contact me through below e-mail addresss.
1) Q: Can i have your quotation?
A: First, please offer us the information of your material size,
without these parameter, we are not able to recommend you the suitable machine
2) Q: Do you have overseas service?
A: No,but we normally help our customers to solve the problems through phone,Email, skype, internet video. high efficiency. We offer one year guaranteen, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paide by client

3)Q: What is the voltage and Hertz in your country?
A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the voltage and Hertz according to your requirment.
4) Q: Your price are high
A: You get what you pay for, our price is based on good quality,We sell the machines all over the
world with good feedback from our customers
5) Q: How about the payment term
A: T/T 30% deposit, 70% of balance paid before shipment.
