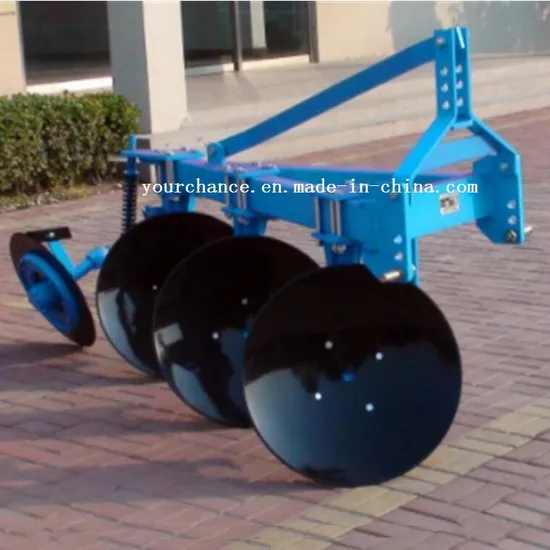

1lyq-320 0.6m Working Width 3 Discs Light Duty Disc Plough for 25-40HP Tractor
| US$470.00-2,730.00 | 1 sets (MOQ) |
Basic Info.
Model NO.
1LYQ-320
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Hanging
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Red, Blue,Green, Other Colors
Warranty
1 Year
Transport Package
Iron Shellframe Box
Specification
Light duty disc plough
Trademark
CYC
Origin
China
HS Code
8432100000
Production Capacity
5000 Sets / Month
Product Description
1LYQ-320 0.6m working width 3 discs Light duty Disc plough for 25-40HP tractor1LY Series Disc plough Main Features:
Disc plough is completely mounted with Tractor, during operation the discs by its rotating to turn the soil, particularly, it is suitable for operation on the field with grasses, straw and stems of crops or plants, big soil resistance and with many stones and brickbat, etc in the field.
It is good at cutting the grasses and straw and free from topped by the grasses,soil or stones, etc.
Main Specification and Technical Parameters:
| 20 Series | ||||||||||
| Model | 1LYQ-220 | 1LYQ-315 | 1LYQ-320 | 1LYQ-420 | ||||||
| Working width (mm) | 400 | 450 | 600 | 800 | ||||||
| Working depth (mm) | 200 | 180 | 200 | 200 | ||||||
| Disc diameter (mm) | 510 | 460 | 510 | 510 | ||||||
| Quantity of disc(Pcs) | 2 | 3 | 3 | 4 | ||||||
| Weight (kg) | 150 | 180 | 200 | 260 | ||||||
| Matched tractor power (HP) | 18-30 | 25-30 | 25-40 | 40-55 | ||||||
| Linkage | Standard three-point mounted | |||||||||
| 25 Series | ||||||||||
| Model | 1LY-225 | 1LY-325 | 1LY-425 | 1LY-525 | 1LY-625 | |||||
| Working width (mm) | 500 | 750 | 1000 | 1250 | 1500 | |||||
| Working depth (mm) | 250 | 250 | 250 | 250 | 250 | |||||
| Disc diameter (mm) | 660 | 660 | 660 | 660 | 660 | |||||
| Quantity of disc(Pcs) | 2 | 3 | 4 | 5 | 6 | |||||
| Weight (kg) | 400 | 420 | 480 | 530 | 570 | |||||
| Matched tractor power (HP) | 40-55 | 50-80 | 75~110 | 100~140 | 120~160 | |||||
| Linkage | Standard three-point mounted | |||||||||
| 30 Series | ||||||||||
| Model | 1LY-230 | 1LY-330 | 1LY-430 | |||||||
| Working width (mm) | 300 | 900 | 1200 | |||||||
| Working depth (mm) | 300 | 300 | 300 | |||||||
| Disc diameter (mm) | 710 | 710 | 710 | |||||||
| Quantity of disc(Pcs) | 2 | 3 | 4 | |||||||
| Weight (kg) | 430 | 490 | 570 | |||||||
| Matched tractor power (HP) | 45-60 | 55-80 | 90-110 | |||||||
| Linkage | Standard three-point mounted | |||||||||
High quality Disc plough have ISO,CE, PVOC COC, CO etc certificates:
Disc Plough by Iron crate box Packing :
Best price will be quoted for you as soon as receive your Requirement !
