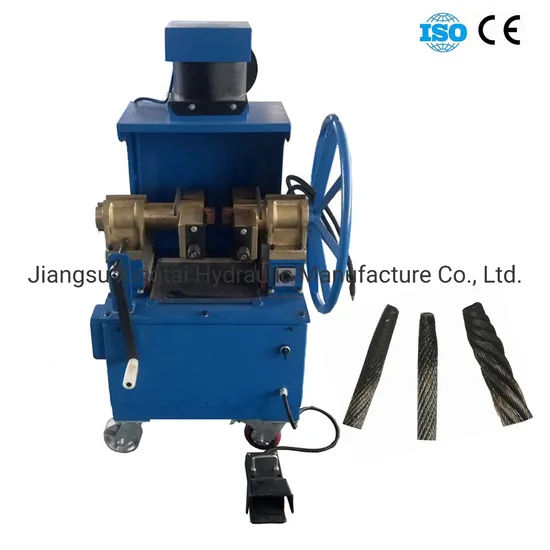

Wire Rope Fuse and Taper Machine

Product Description

RD series steel rope molten head machines, with high melting speed and easy to operate, are applicable for melting steel ropes of various dimensions, especially elevator ropes, min ropes, crane cables and other high quality steel ropes. The steel ropes melted are neat and smooth with conical and spiral ends. These machines are mainly applied by steel rope manufacturers and customers. (e. G. Port, jetty, elevator maker etc. )
Product Features:
1. Cleverish in shape and convenient to move.
2. With a wide range in melting diameter, the steel ropes can be melted without replacing any parts within the range of prescribed diameter.
3. Easy to operate, no spanner is needed for tightening device, and the welding head is nice in appearance.
4. Low working power, energy saving and safe in use.

Mode No.	RDQ-1010	RDQ-1011	RDQ-1012	RDQ-1013
Rated Power (KW)	5KW	12KW	50KW	100KW
Burn out Range	3-16mm	6-32mm	20-40mm	28-60mm
Dimensions(mm)	700x400x1200	700x800x1150	1600x1200x1800	1600x1200x1800
Weight	75kg	260kg	550kg	600kg

FAQ:
Q: Are you trading company or factory?
A: We are professional wire rope pressing machine and wire rope annealing machines manufacturer with 20 years' experience.
Q: What is after-sales services?
A: 24 hours around the clock & 12 months warranty
Life-long maintenance service for the product
Q: If I didn't use press machine before, how can I install and operate the machine?
A: 1. Fix fitted mould, tight the bolts on the left of both tool set ( the tool is offered by factory);
Refer diameter of wire rope table to adjust pressure, put sleeve with steel wire rope in the middle of mould Vertically.
2. Operate pedal rise switch, the piston will rise and the rising pilot lamp lights; Auto-stop when
reach given pressure and finish pressing;
3.Operate descendent switch, the piston will descend and the descendent pilot lamp lights; and take out pressedsteel wire rope.
We will delivery machine with use manual and CD.
Q: Shall I see the machine work before I order?
a. Please send us inquiry and we will check whether there are customers in your country.
b. You may come our factory, we will teach you how to operate.
c. We may send you video.
Q: How long to finish one machine if I place order?
A: As usually, delivery time is 30 days. If we have machine and dies that you need in stock, we may delivery machine in 7-10 days after receipt of your payment.
Q: How can we believe your quality or service?
A: We have many oversea customers, you can contact them to know more about us. Maybe we have customers in your country, you may call them or visit them to see our machine.
If you have any other question please do feel free to contact us.
