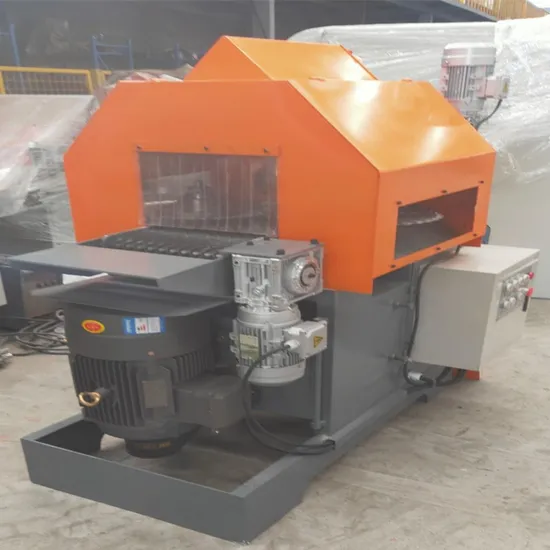

Slab Cutting Rip Sawmill Circular Gang Ripsaw Machine
| US$2,400.00-5,600.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
200
Power Type
Electric
Layout
Horizontal
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
12 Month
Name
Slab Cutting Saw
Model
200
Cutting Width
200mm
Cutting Height
100mm
Blade
305mm
Motor
7.5kw*2
Transport Package
Customized
Specification
Customized
Trademark
Customized
Origin
China
HS Code
8465910000
Production Capacity
200 Sets Per Year
Packaging & Delivery
Package Size
250.00cm * 100.00cm * 200.00cm
Package Gross Weight
500.000kg
Product Description
Product ParametersSlab Cutting Horizontal Circular Sawmill Multi Rip Saw
Popular and highly trusted in
Australia,Bosinia and Herzegovina,Chile,Canada,Czech,Estonia,Ecuador,Germany,Ghana,India,
Indonesia,Ivory Coast,Jamaica,Liberia,Mexico,Myanmar,New Zealand,Nepal,Paraguay,
Papua New Guinea,Romania,Sierra Leone,Turkey,USA,Ukrain,Vietnam
| Model | 200 | 250 | 150 | 300 |
| Max Cutting Height MM | 40-100 | 40-100 | 100-150 | 100-150 |
| Max Cutting Width MM | 200 | 250 | 150 | 300 |
| Saw Blade Diameter MM | 305 | 355 | 305 | 455 |
| Motor Power KW | 7.5*2 | 7.5*2 | 15*2 | 15*2 |
| Weight KG | 480 | 600 | 1350 | 1420 |
Related Machines
Log cutting Double Arbor Multi Ripsaw
| Model | 150 | 200 | 240 | 260 | 285 | 330 | 340 | 360 | 400 | 430 | 480 |
| Cut Diameter MM | 20-150 | 60-200 | 80-240 | 100-260 | 130-285 | 150-330 | 150-340 | 170-360 | 180-400 | 200-430 | 250-480 |
| Saw Blade Diameter MM | 255 | 305 | 355 | 380 | 405 | 455 | 480 | 500 | 550 | 600 | 650 |
| Motor Power KW | 18.5*2 | 22*2 | 30*2 | 30/37 | 30/37 | 37*2 | 45/55 | 55*2 | 55*2 | 75*2 | 75*2 |
| Weight KG | 1570 | 1720 | 2200 | 2300 | 2350 | 2550 | 2650 | 2680 | 3500 | 3880 | 4100 |
Timber cutting Double Arbor Multi Ripsaw
| Model | 60 | 80 | 100 | 120 | 150 | 160 | 200 | 250 | 270 | 300 |
| Cut Height MM | 0-60 | 30-80 | 40-100 | 50-120 | 60-150 | 70-160 | 90-200 | 110-250 | 130-270 | 150-290 |
| Cut Width MM | 250-300 | 250-300 | 250-300 | 250-300 | 250-300 | 350-400 | 350-400 | 350-400 | 350-400 | 350-400 |
| Saw Diameter MM | 150 | 180 | 210 | 230 | 255 | 280 | 355 | 380 | 405 | 455 |
| Motor Power KW | 18.5/22 | 22*2 | 22*2 | 22/30 | 22/30 | 37/45 | 37/45 | 45*2 | 45/55 | 55*2 |
| Weight KG | 1190 | 1260 | 1420 | 1560 | 1620 | 2480 | 2550 | 2580 | 2620 | 2700 |
Single Arbor Multi Ripsaw With Laser Positioning
| Model | 500 | 800 |
| Max Sawing Wood Thickness MM | 50 | 50 |
| Max Sawing Wood Width MM | 500 | 800 |
| Saw Blade Diameter MM | 210 | 210 |
| Feeding Model | Belt | Belt |
| Motor Power KW | 11 | 15 |
| Length*Width*Height MM | 1350*850*1350 | 1350*950*1350 |
| Weight KG | 510 | 730 |
Company Profile
Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!
