Four Shuttle Circular Loom Knitting Machine for PP Plastic Bag

Product Description

Brand : Nanyi
Adopt the latest energy saving synchronous motor and the intelligent micro-computer controling system can be installed if
required.It can adjsut the weft density and compensate the weft density in case of weft-braking , which can improve the evenness
of woven fabrics.
Brand : Nanyi
With the scroll transmission by little cam and swing-arm wheel, the machine runs easily and stably, non-lubrication.
Brand : Nanyi
With the detector for warp-breaking, weft-breaking and weft-ending, the sensibility for automatic stop becomes reliable.

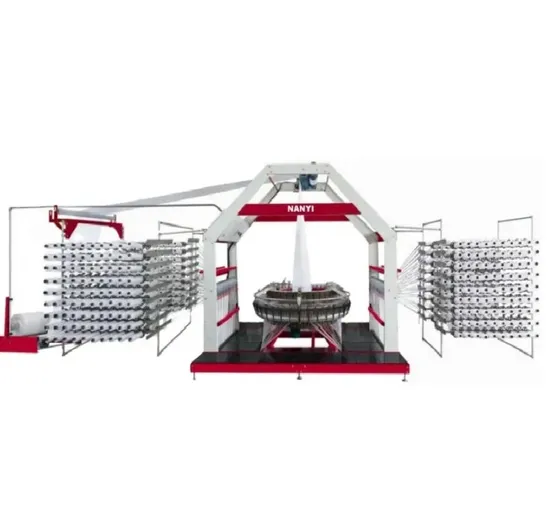

PP Woven Bag Weaving Machine Four Shuttle Circular Loom:
Four Shuttle Circular Loom > NY-YZJ-750/4
This series circular loom is used for weaving PP/PE flat yarn to be woven fabric in roll, it can weave different quality flat yarn even complete recycled material. Reasonable design, proper structure, easy operation, convenient maintenance, low power consumption and high efficiency etc.
★ Sensitive automatic stop with the intelligent detector for warp-breaking,weft-breaking and weft-ending;
★ Rimless wheel shuttle style, less friction, more steady running;
★ New weft automatic feeding system, reducing waster;
★ Adopts the latest energy saving synchronous motors to control the winder,main frame and fabric lifting roller to be synchronized, when the loom stops,the winder stops at the same time with no harm of rubber sheet of winder roller and the fabric, also avoid less density of fabric which is usually caused by restarting the loom after stop;
★ Adopts the latest energy saving synchronous motors to adjust the weft density and comcensate the weft density in case of weft-breaking,that improve the evenness smooth of woven fabric

Model No.	NY-YZJ-750/4
Shuttle Quantity	4
Folded Cloth Width	300-750
Max Number Warp	768pcs
Max Diameter of Warp Bobbin	110mm
Max Diameter of Weft Bobbin	110mm
Max Revolution	180rpm
Bobin Size (ID*L)	Φ38*230mm/Φ35*218mm
Power of Main Motor	2.2
Power of lift-up Motor (kw)	0.37
Warp infeed Motor	0.15kw*2
Winder Motor	1.6 Nm
Max Winding Diameter	1200mm
Installing dimensions(L*W*H) m	8.5*2.2*3.3
Approxi.Weight(kg)	1600
