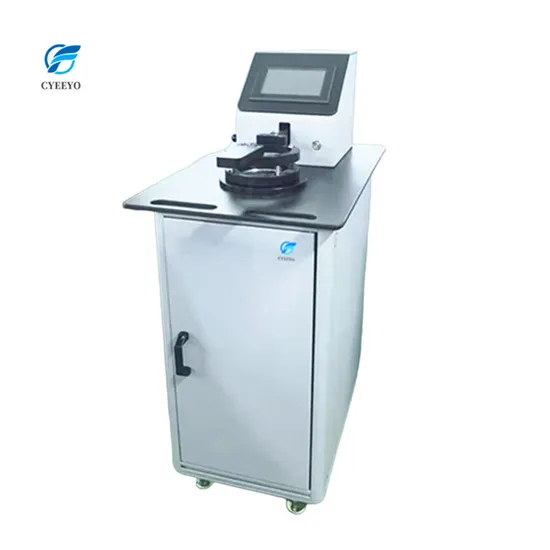

Jisl1096 Digital Textile Air Permeability Tester for Fabric

Product Description

ISO7231 ISO5636 BS5636 ASTM D737 Fabric Testing Instrument Air Permeability Tester Scope of application: Used to test coating fabric, filter paper, filter material, plastic and other sheet material breathability of rapid determination.
Applicable standard: GB/T5453 GB/T13764 ISO9237 ISO7231 ISO5636 BS5636 ASTM D737 DIN 53887 JIS L1096 BS5636
Features:
First, high precision pressure sensor, high accuracy.
Second, smart touch interface, dynamic test display.
Third, the full range of automatic detection and conversion of various samples of air permeability and air permeability.
4, can be arbitrarily set different national standard parameters, units, test results without conversion directly printed out.
Five, the unit of measure: mm/s, CFM, cm3 / cm2 / s, I/m2 / s, I/dm2 / min, m3 / m2 / min
Sixth, can provide an authoritative third-party accredited laboratory measurement calibration certificate (paid service).
Technical parameters:
1, pressure range: 0 ~ 4000Pa self-set pressure drop
2, measurable air permeability: 0.1 ~ 12000mm/s
3, measurement error: ≤± 2%
4, measurable fabric thickness :≤15mm
5, test function: fixed pressure difference, fixed flow, fixed time
6, sample area setting circle: 5cm2; 20cm2; 50cm2; 100cm2; four
7, sample diameter setting circle: with a diameter of 50mm (≈19.6cm2) with a diameter of 70mm (≈38.5cm2)
8, test hole plate: a total of 11 (quick jack type)
9, data processing capacity :≤1000 tests
10, data output: high-definition touch screen display; Comes with micro printer;
11, power source: AC 220V±10V 50Hz
12, power consumption: 2000W
13, weight: 80Kg
14, external shape: 445×700×1100mm (L×W×H)

14, external shape: 445×700×1100mm (L×W×H)
