500 Gallon Steam Heating Mixing Tank (SUS304 or S. S. 316L)
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
500 gallon
Application
Liquid, Liquid with Suspended Solids, Viscous Fluid
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Food, Pharmaceutical
Certification
CE
Condition
New
Cooling Method
Water Cooling
Heating Method
Steam Heating
Insulation Material
Mineral Wool
Main Material
Stainless Steel
Mixing Capacity
1000L & Above
Mixing Drum Shape
Drum
Stirring Type
Spiral
Warranty
1 year
Working
Convection Mixer
Name
500 Gallon Steam Heating Mixing Tank
Name 2
Stainless Steel Mixing Tank
Name 3
Mixer
Name 4
Liquid Mixing Tank
Name 5
Liquid Mixing Machine
Mixer Type
Agitator
Layout Type
Verticle
Operating Type
Continuous Operating
Transport Package
Wrapped with Cloth or Woodcase Package
Specification
customerised
Trademark
xuanli
Origin
China
HS Code
8474390000
Production Capacity
300 Sets/Month
Product Description

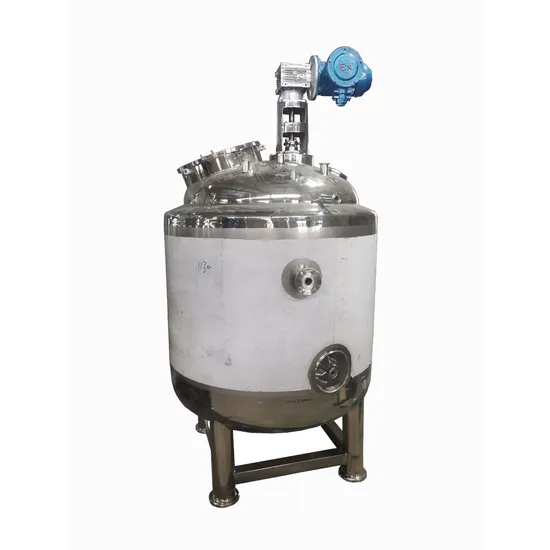

500 gallon steam heating mixing tank (SUS304 or S.S.316L)
Summary:
This equipment is mainly used in storing material used in food, medicine, chemical industries and it is indispensable storage equipment for them.You can have it made by SUS304, SUS316L stainless steel or Q235B carbon steel. It is reasonably designed, produced by advanced technology and confirm to GMP requirement.
The inner surface of the tank can be mirror polished and the roughness can meet as high as Ra <=0.8 um. The outer surface is polished as follows: the cover and bottom will be mirror polished and the remaining part will be mat polished. All the polish meet international standard.
Features:
Material: SUS304 or S.S.316L
Mixing type: anchor type, frame type or paddle type
Mixing structure: cycloid pin wheel reducer or stepless reducer
Sealing equipment: Mechanical sealing
Heating way: steam heating, electrical heating or heat conduct oil.
Volume: can be made as per customer requirements
Measure: can be made as per customer requirements
Technical Parameter:
| FYG100 | FYG200 | FYG500 | FYG1000 | FYG1500 | |
| Volume L | 100 | 200 | 500 | 1000 | 1500 |
| Diameter mm | 500 | 600 | 800 | 1000 | 1200 |
| Tank Pressure MPa | 0.25-0.5 | ||||
| Jacket Pressure MPa | 0.30 | ||||
| Motor Power kw | 1.1 | 1.5 | 2.2 | 4.0 | 4.0 |
| Agitation Speed r/min | 85 | ||||
| Tank Type | First Grade Pressure Tank | ||||
| FYG2000 | FYG2500 | FYG3000 | FYG4000 | FYG5000 | |
| Volume L | 2000 | 2500 | 3000 | 4000 | 5000 |
| Diameter mm | 1200 | 1400 | 1400 | 1500 | 1600 |
| Tank Pressure MPa | 0.25-0.5 | ||||
| Jacket Pressure MPa | 0.30 | ||||
| Motor Power kw | 4.0 | 5.5 | 5.5 | 5.5 | 7.5 |
| Agitation Speed r/min | 85 | ||||
| Tank Type | First Grade Pressure Tank | ||||
