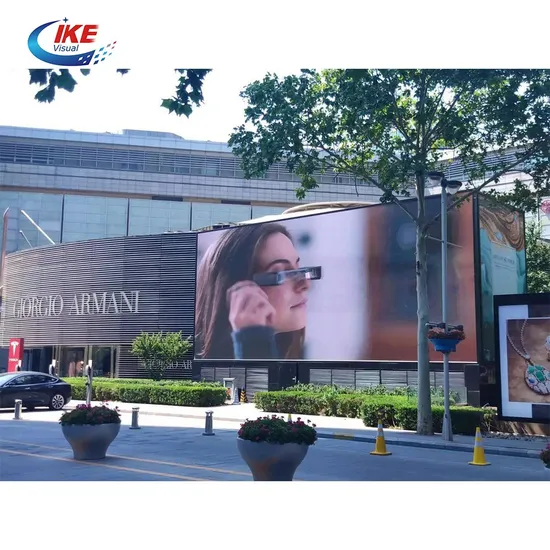

Outdoor Rental LED Display Concert Stage Background LED Vide Wall Digital Signage Screen Advertising

Product Description

Pitch Size	5mm
Module Size	320*160mm
Module Pixel(dots)	64dots*32dots
Pixel Configuration	1 Red, 1 Green, 1 Blue SMD 3-in-1
Color scale	65536degree/16777216colors
Pixel density	40000pixels/square meter
View angle(H/V)	≥140/140degree
Brightness	≥6500cd/square meter
Brightness adjustment	64 level automatic or manual
View distance	6-200m
Power consumption	100-1200W/square meter
Net weight	42kg/square meter
Operating temperature	-25°C~+60°C
Operating humidity	10%-95%RH
Life time	≥100,000hours
Out of control dot	≤1/10,000
Whole Display Flatness	≤1mm Juncture
Exchange frame speed	>150frames per second
Refresh frame frequency	1920Hz-3840Hz
Control distance	120m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power	110V/220V±15% 50Hz
Operating system	Windows series
Drive mode	constant current driving, 1/8 scan
Display mode	VGA640X480-VGA1600X1024
Protection Level	IP65
Maintenance way	Rear access

More Design
Company Profile
Our Advantages
Packaging & Shipping
FAQ Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for 10 years.
Q2:How does your factory do regarding quality control?
A2:Quality is priority.Our company always attach great importance to quality controlling from the very beginning to the very end.We focus on every detail,Our factory has gained CE, ROHS ,FCC,IP65 authentication.
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q4:When will you make the delivery?
A4:Generally, we can make the delivery within 10 working days according to the size and quantities of your order.
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory.
Q6:How long is the warranty?
A6:The standard warranty is 2 year. It could be longer upon request.
Q7:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
